It's right for you if... You're looking for a long-travel e-MTB that gives you a serious power boost without holding you back from hitting the techy terrain and big drops you love. You prefer to drop your upgrade budget on a plush suspension set-up and killer parts than on a frame.
Atriði 2
The tech you get A burly alloy frame with a 625 Wh Removable Integrated Battery, a super-responsive RockShox ZEB fork with extra-beefy 38 mm stanchions and loads of adjustability, a RockShox Super Deluxe Ultimate shock with an updated Thru Shaft damper, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including the new Bluetooth® LED remote for easy connectivity and all-in-one navigation and activity tracking through the eBike Flow app. A SRAM GX Eagle drivetrain with an extra-low 52-tooth climbing gear, and Bontrager Line Comp 30 29er wheels with robust Bontrager SE5 Team Issue tyres that come completely tubeless-ready, including sealant.
Atriði 3
The final word Our top-shelf alloy Rail features major upgrades to the suspension, drivetrain, dropper and more. If you’re looking for an e-MTB that’s spec’d like our best long-travel trail bikes and shreds just as hard, look no further.
Atriði 4
Why you'll love it
Atriði 5

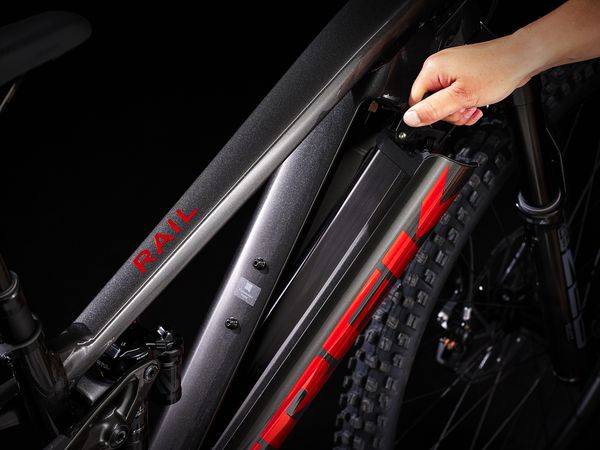

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
Atriði 6

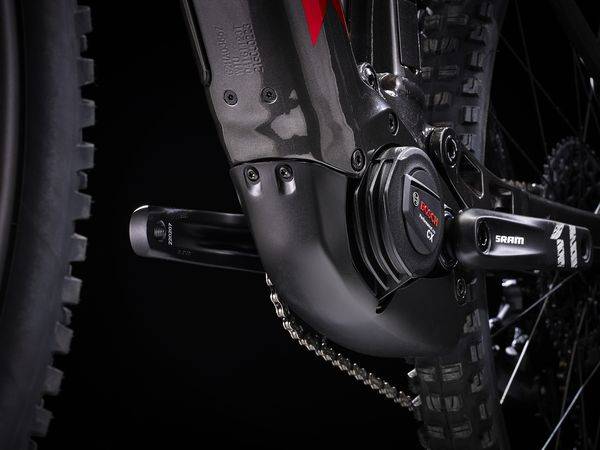

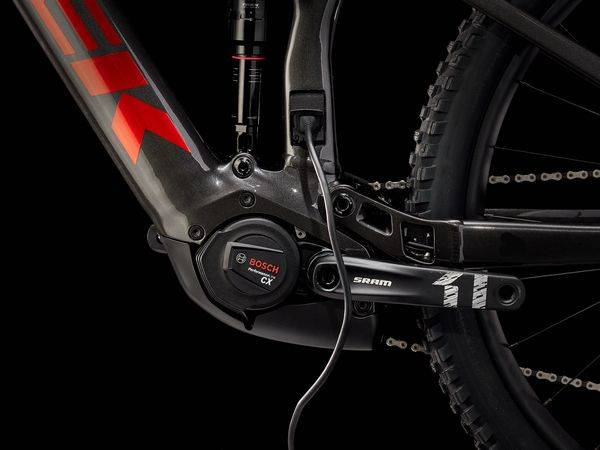

The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day
Atriði 7
Bosch's new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customisation at your fingertips
Atriði 8
The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
Atriði 9

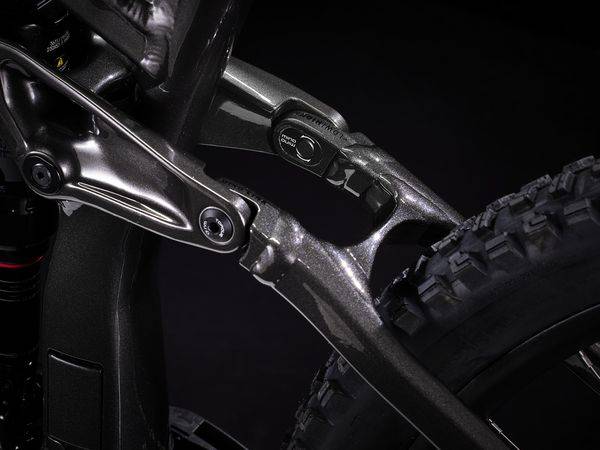

Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
Frame Size: S
Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Frame Size: M, L, XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox ZEB Select+, DebonAir spring, Charger 3 RC2 damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock

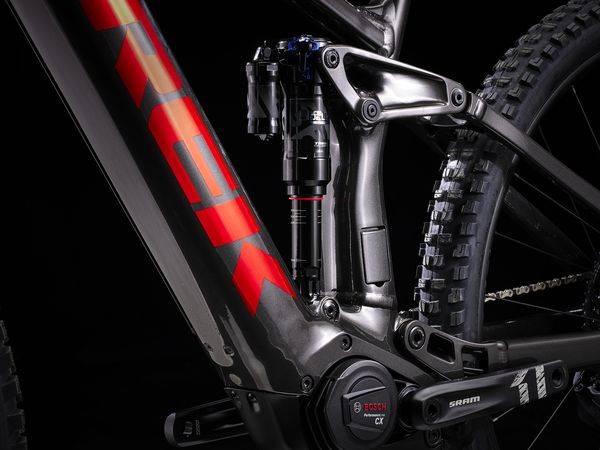

RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230 mm x 57.5 mm
Max compatible fork travel
170mm (580mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre Size: S, M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre Size: S, M, L, XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.60", Fork: See manufacturer
Battery
Bosch PowerTube 625 Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Computer
Bosch LED remote, smart system
Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Shifter
SRAM GX Eagle AXS, 12 speed
Rear derailleur
SRAM GX Eagle AXS
Crank
SRAM X1 1000, 34T, 165 mm length
Chainring
SRAM X-SYNC 2, 34T, alloy
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Pedal
VP-536 nylon platform
Atriði 15
Max. chainring size 1x: 34T
Atriði 17
Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost Size: S
Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
Seatpost Size: M
Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
Seatpost Size: L, XL
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Grips
Bontrager XR Trail Elite, nylon lock-on
Stem
Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake rotor Size: S, M, L, XL
SRAM CenterLine, 6-bolt, round-edge, 180mm
Brake rotor Size: S, M, L, XL
SRAM CentreLine, 6-bolt, round edge, 200 mm
Brake Set
SRAM Code R 4-piston hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
Atriði 19
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
