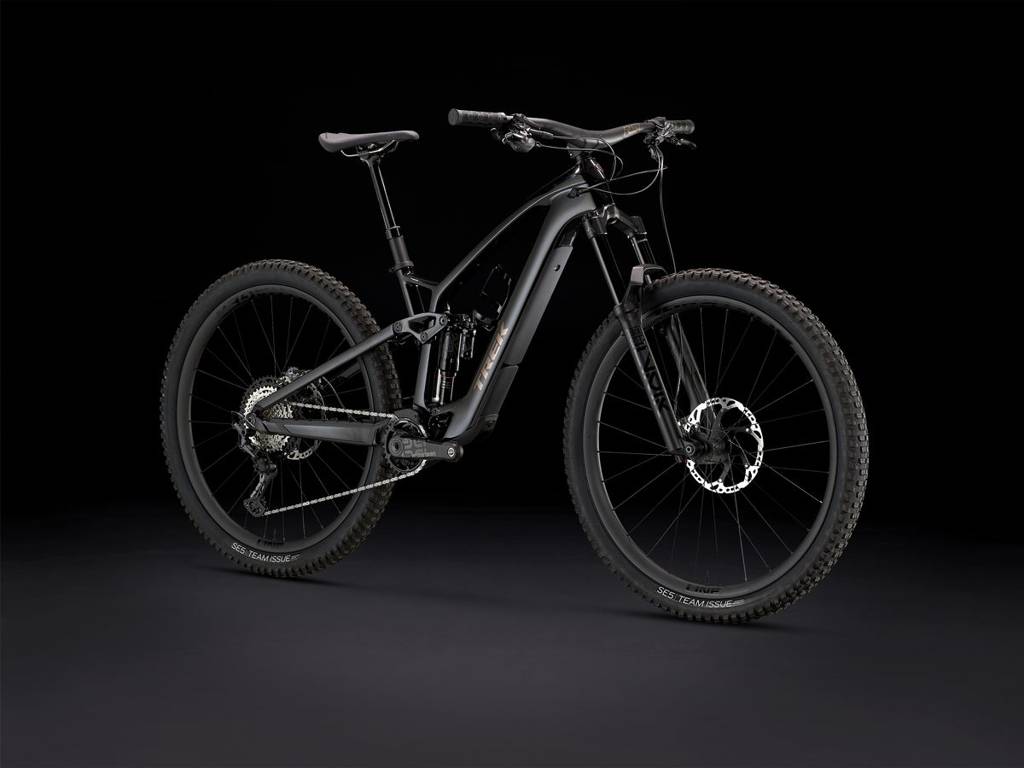

Fuel EXe 9.8 XT (360Wh) - (M)

Why you'll love it

It finds the perfect balance between a traditional and electric ride, with adaptive assist that disappears under you on climbs, and a nimble ride that feels natural and playful on descents

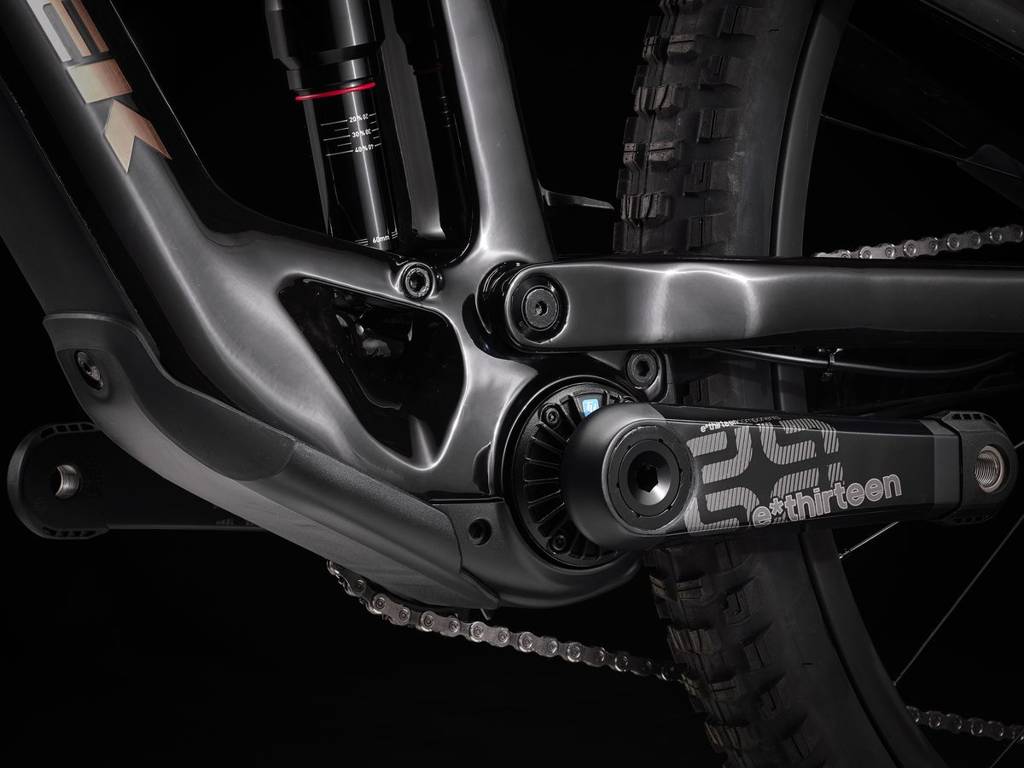

Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, plus it ramps up power with you for a natural ride feel

The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike

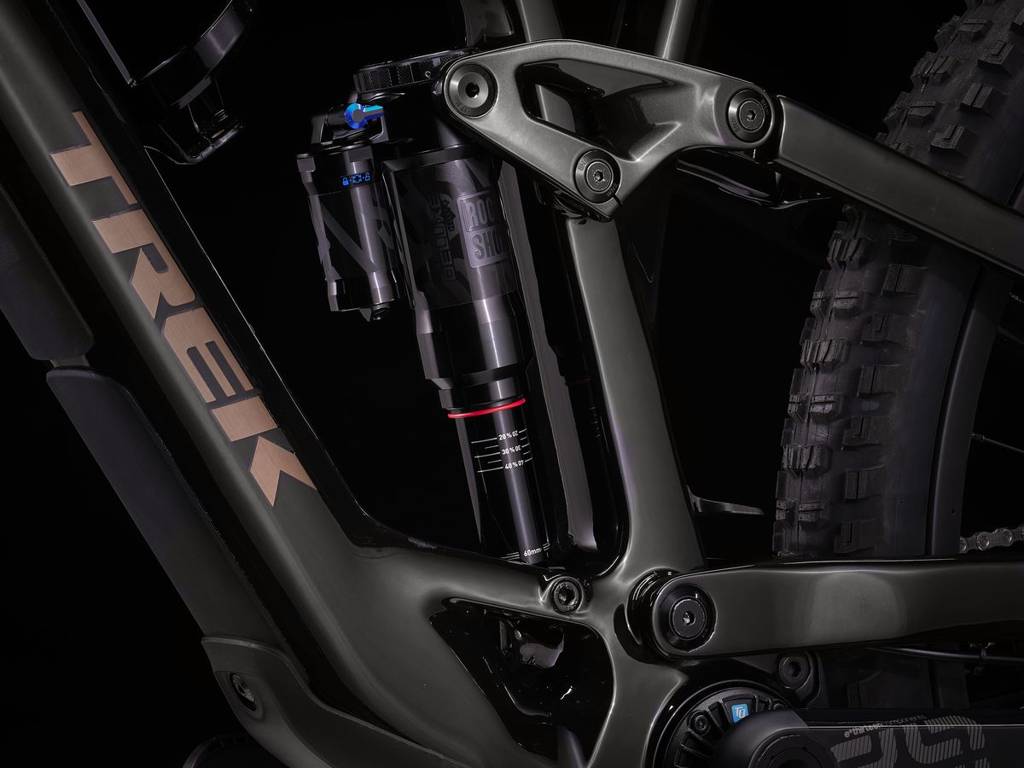

It keeps your ride silky smooth even when the trail gets rowdy thanks to the upgraded RockShox suspension package that offers 150 mm of front and 140 mm of rear travel

You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike

It's right for you if...

You're a trail rider who wants the best of both traditional and e-mountain bikes. You don't want to compromise on nimble control for power, but want a little assist on the ups. You appreciate the latest technology and want upgrades where they matter most. You don't want to lose out on the natural experience of mountain biking and want a refined motor that quietly assists while you ride.

The tech you get

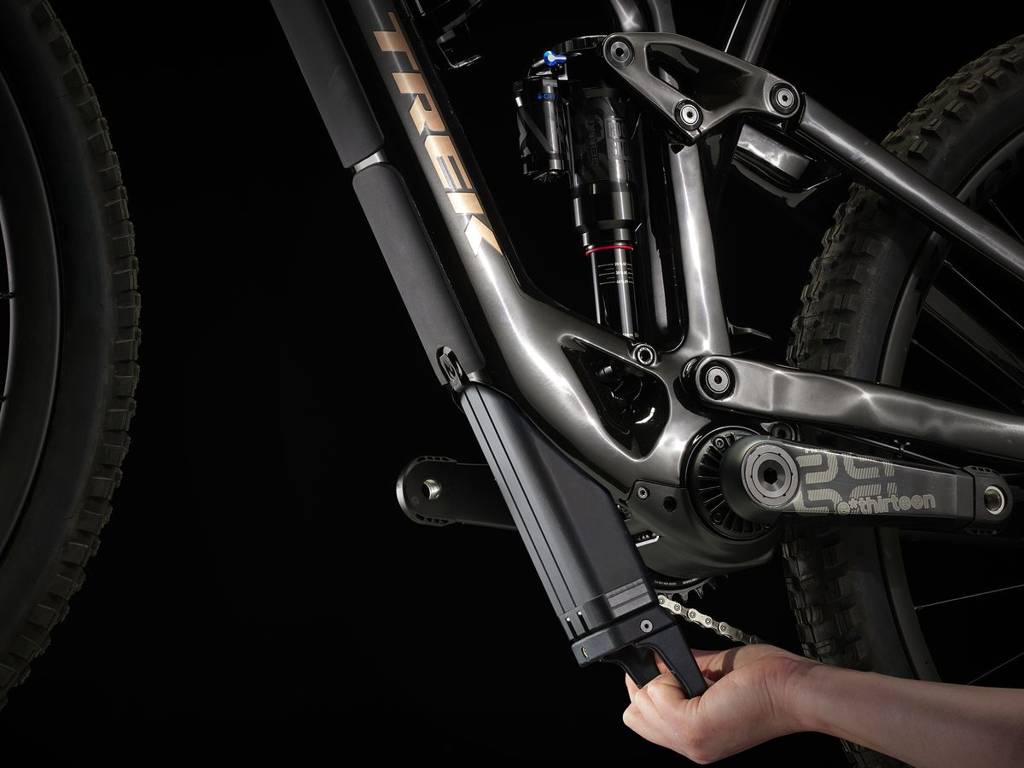

An OCLV Mountain Carbon frame equipped with a fully encased 360 Wh battery and TQ harmonic pin ring transmission with a smart charging port, integrated LED display and discreet handlebar remote. Plus, a 150 mm RockShox Lyrik Select+ fork with DebonAir spring and Charger 2.1 RC damper, and 140 mm RockShox Super Deluxe Select+ rear suspension. All wrapped up with the precise shifting and modulation of a Shimano XT drivetrain.

The final word

The Fuel EXe 9.8 is an e-bike that evolved for the trail, with a lively and playful ride on descents and intuitive assist that adapts to your riding on the climbs. Its equipped with a tiny and powerful TQ transmission that tucks away quietly so you can stay in the moment on the trail, and is finished off with the precise shifting of Shimano XT, carbon wheels and an upgraded suspension package, putting your money where it matters most.

Specification

Framset

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel

RockShox Lyrik Select+, DebonAir spring, Charger 2.1 RC damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel

RockShox Super Deluxe Select+ RT, 205mm x 60mm

160mm (575mm axle-to-crown)

Wheels

Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle

Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle

Bontrager Switch thru-axle, removable lever

Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"

Bontrager TLR sealant, 180 ml/6 oz

Bontrager TLR

Frame: 29x2.50", Fork: See manufacturer

Drivetrain

Shimano XT M8100, 12-speed

Shimano XT M8100, long cage

E*thirteen E*spec Plus, 165 mm length

E*thirteen E*spec Race carbon, 165 mm length

E*thirteen E*spec, 32T alloy ring, 55 mm chainline

Shimano XT M8100, 10-51, 12-speed

Shimano XT M8100, 12-speed

1x: 34T, min 30T

Components

Bontrager Arvada, austenite rails, 138 mm width

Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length

Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length

Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length

Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length

Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length

Bontrager XR Trail Elite, nylon lock-on

Shimano XT M8120 4-piston hydraulic disc

Shimano RT76, 6-bolt, 203 mm

Frame: 203mm, Fork: see fork manufacturer

Accessories

TQ 360Wh

TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power

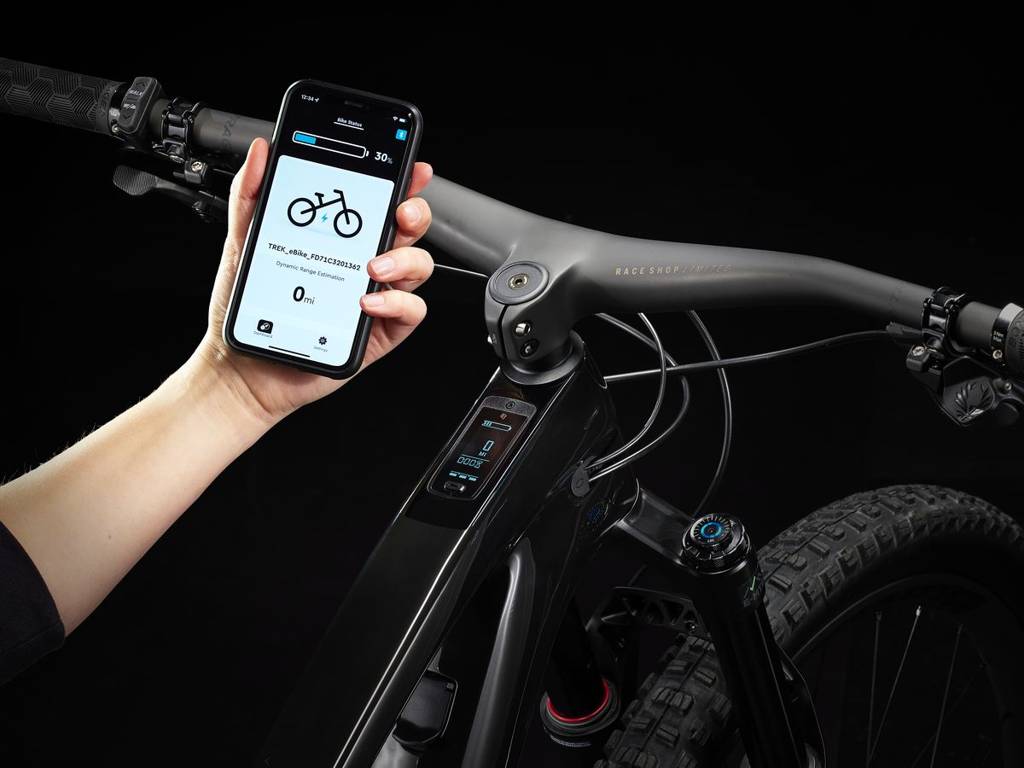

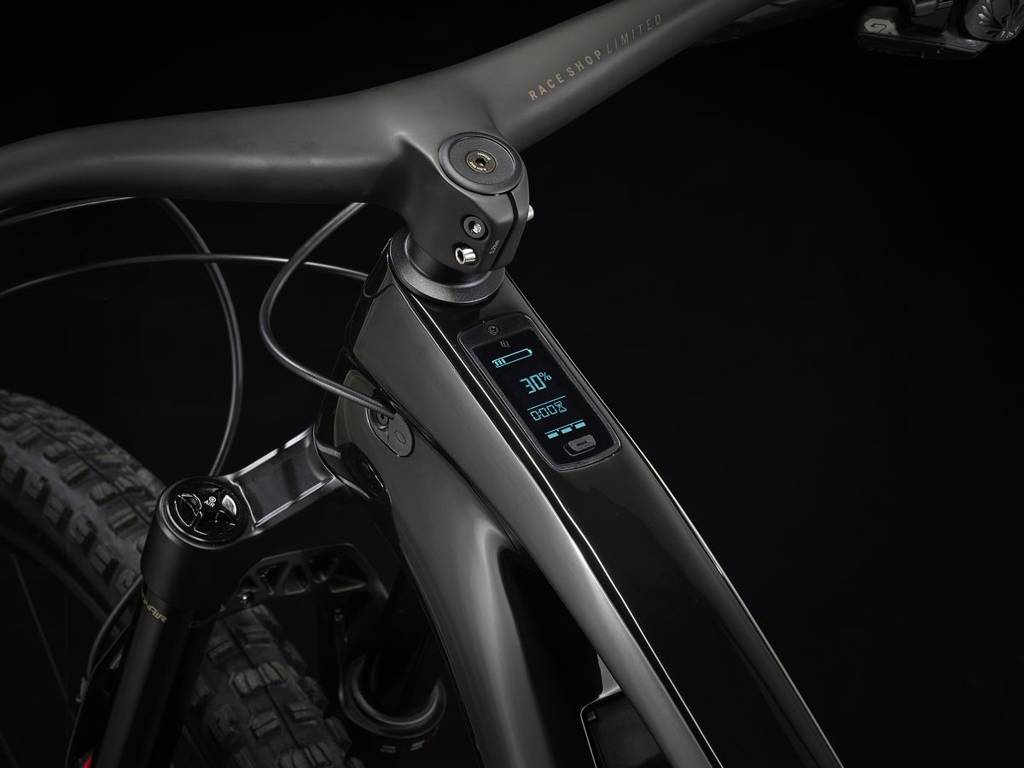

TQ LED display with Bluetooth & ANT+ connectivity

TQ 4A charger

Weight

M - 18.10 kg (with TLR sealant, no tubes)

This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
