Why you'll love it
Atriði 2
You get discreet power when you want it, and the nimble feel of a traditional mountain bike wherever you roll
Atriði 3
Its tiny-but-mighty TQ transmission is tuned for the trail, keeping things quiet so you can stay in the moment, and ramps up power with you for a natural ride feel
Atriði 4

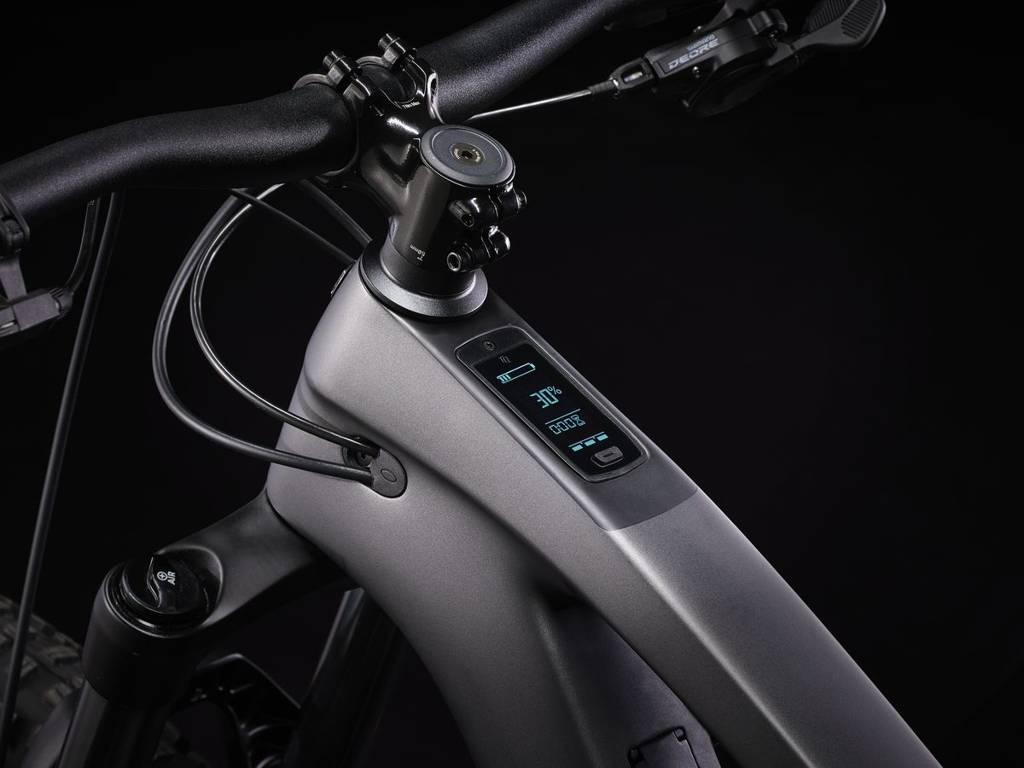

The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional mountain bike
Atriði 5
Its 150 mm of buttery-smooth front travel pairs with 140 mm of rear suspension to eat up rocks and roots for a ride that's ready to tackle anything
Atriði 6

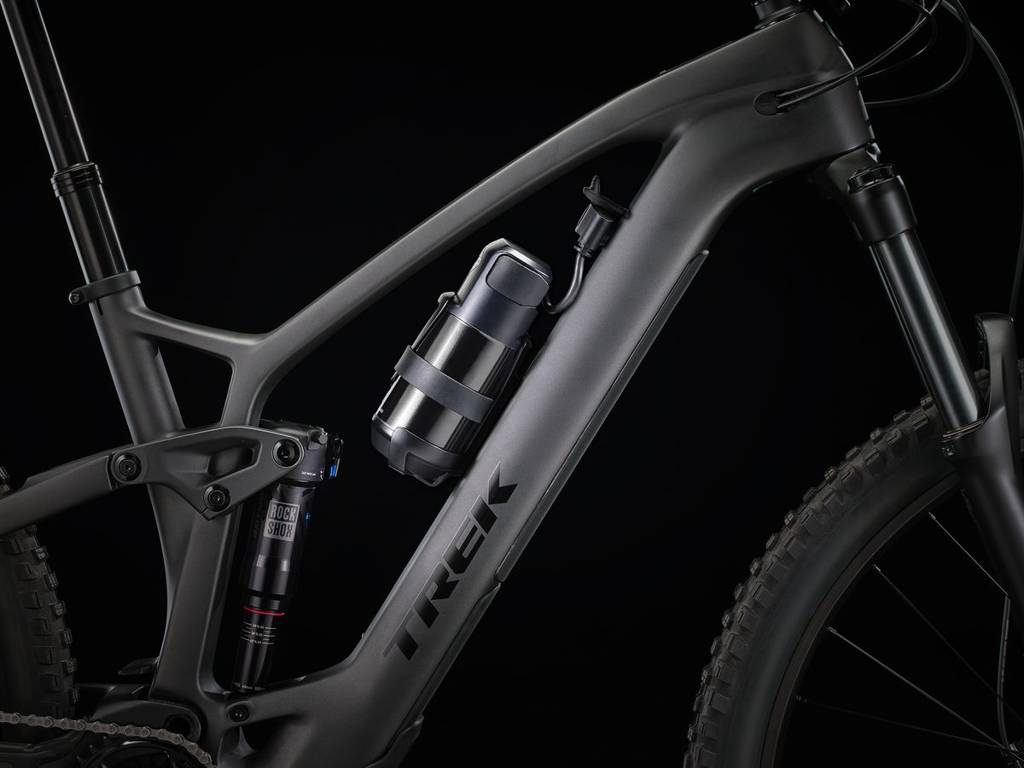

You'll be able to add on a range extender when you want a little extra fuel in the tank for big days on the bike
Frame

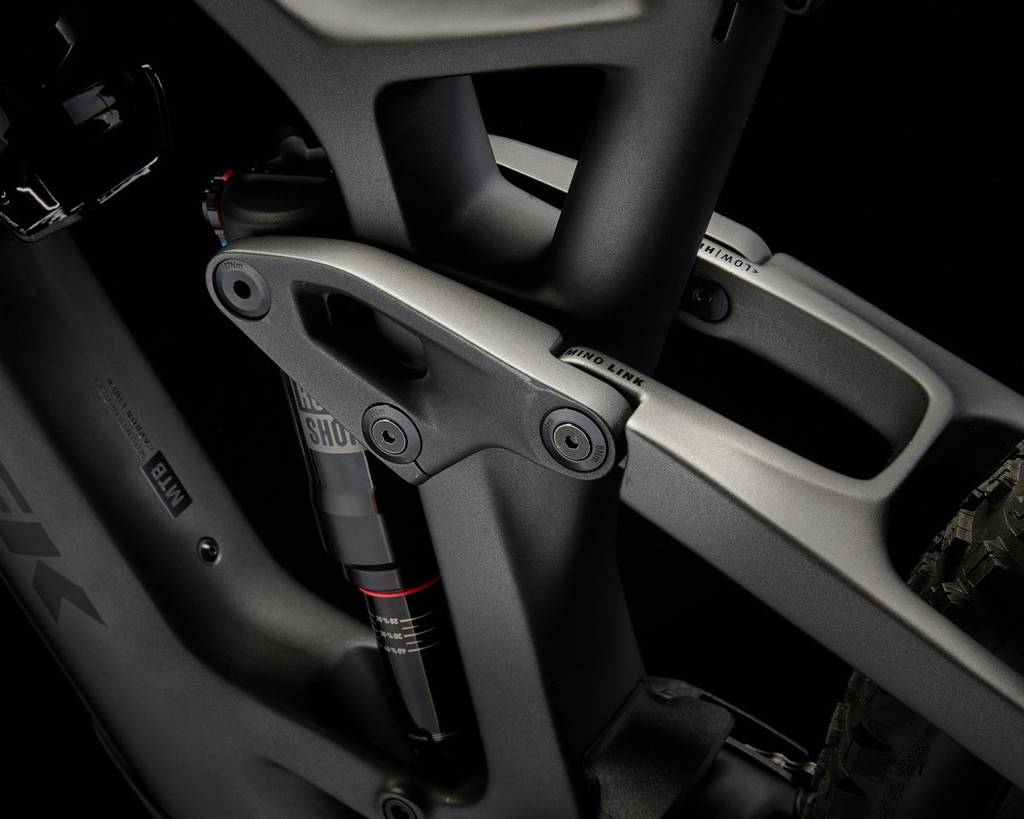

OCLV Mountain Carbon, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chainline, Mino Link, ABP, Boost148, UDH, 140 mm travel
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 150 mm travel
Shock

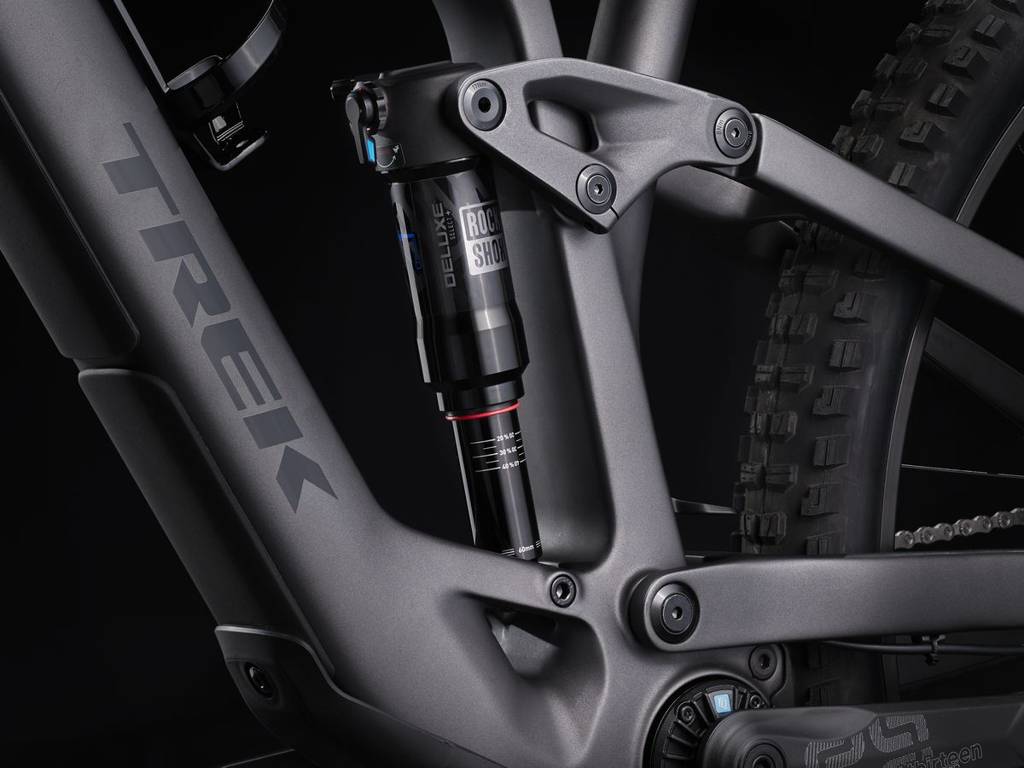

RockShox Deluxe Select+ RT, 205 mm x 60 mm
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Shifter
Shimano Deore M6100, 12-speed
Rear derailleur
Shimano Deore M6100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Chainring
E*thirteen E*spec, 32T alloy ring, 55 mm chainline
Cassette
SunRace CSMZ800 11-51, 12 speed
Max. chainring size
Max: 34T Min: 30T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: S
TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length
Seatpost Size: M
TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length
Seatpost Size: L, XL
TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Brake
TRP Slate EVO hydraulic disc
Brake rotor
TRP, 6-bolt, 203 mm
Motor
TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Computer

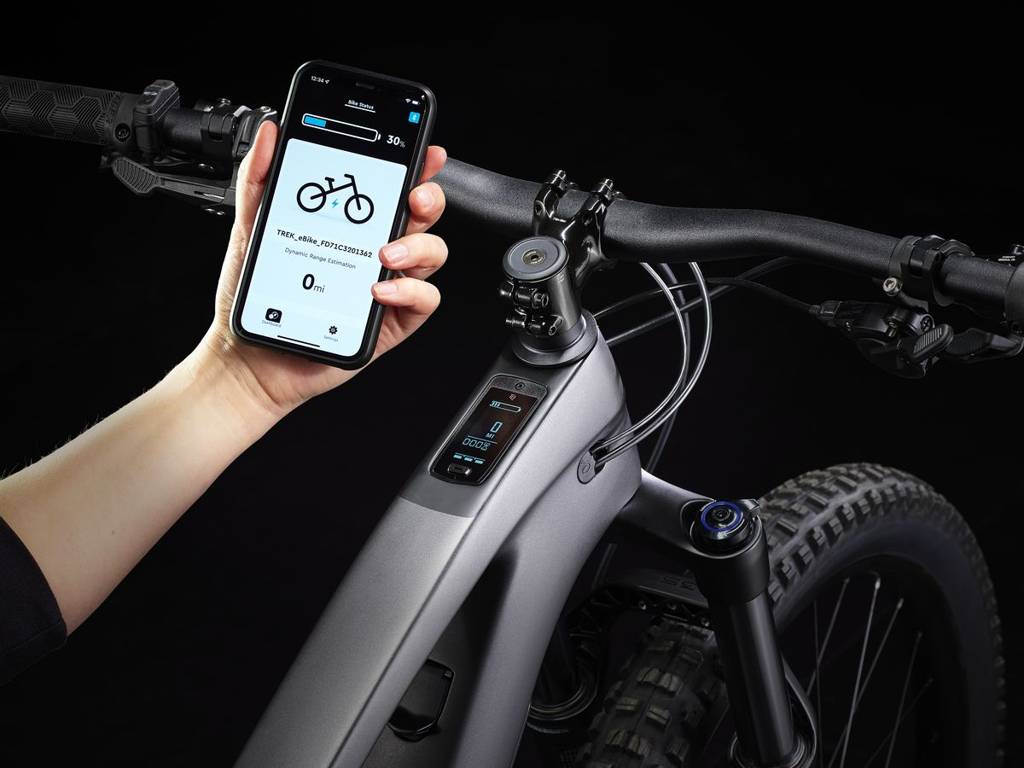

TQ LED display with Bluetooth & ANT+ connectivity
Weight
M - 19.93 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
