Frameset Frame
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel Fork - RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel Shock - Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm Max compatible fork travel - 120mm (531mm axle-to-crown)
Wheels Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle Hub rear - Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle Skewer rear - Bontrager Switch thru axle, removable lever Rim - Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve Tyre - Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" Tyre part - Bontrager TLR sealant, 180 ml/6 oz Max tyre size - Frame: 29x2.40" Fork: See manufacturer
Drivetrain Shifter
Shimano Deore M6100, 12-speed Rear derailleur - Shimano XT M8100, long cage, 51T max cog Cassette - Shimano Deore M6100, 10-51, 12-speed Chain - Shimano Deore M6100 Max. chainring size - 32T with 52mm chainline, 36T with 55mm chainline
Components Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width Seatpost Size: S - TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length Seatpost Size: M , L , XL - TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length Handlebar Size: S - Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width Handlebar Size: M , L , XL - Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width Grips - Bontrager XR Trail Comp, nylon lock-on Stem Size: S , M - Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length Stem Size: L , XL - Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length Brake - Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper Brake rotor - Shimano RT66, 6-bolt, 180mm
Accessories E-bike system

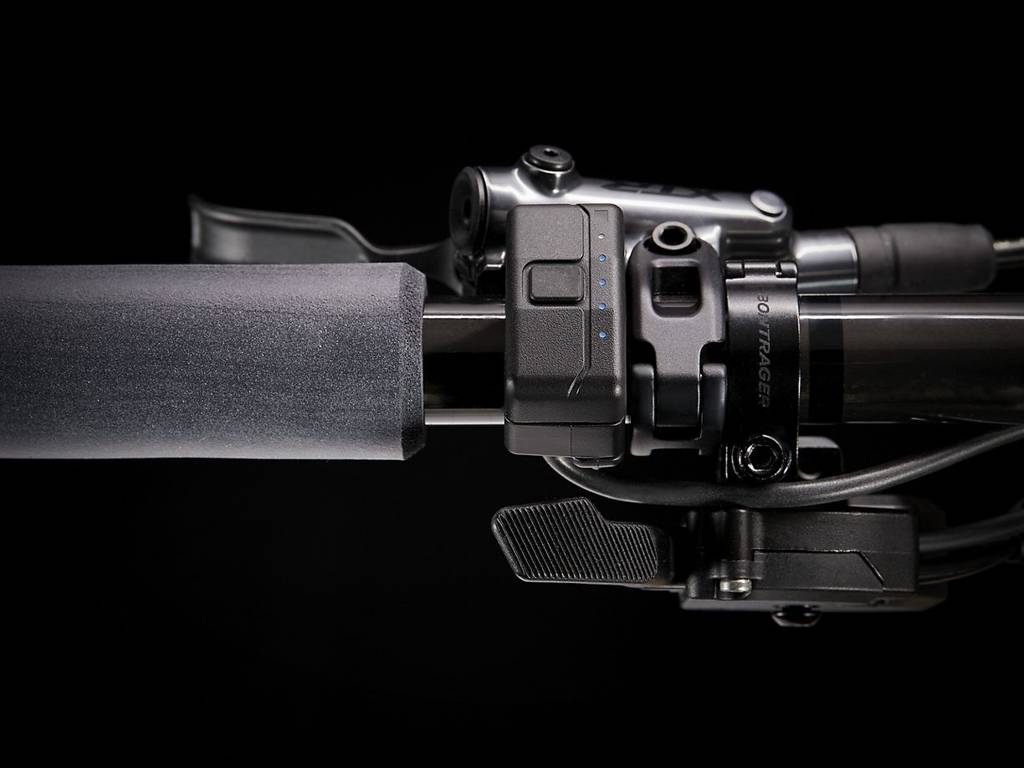

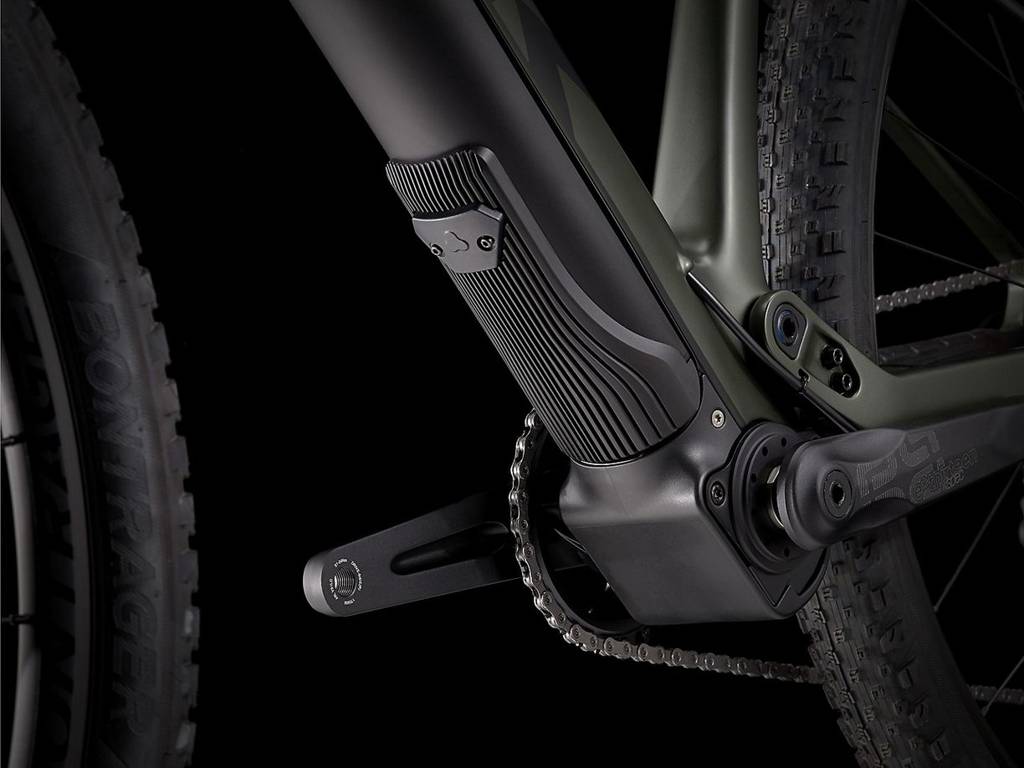

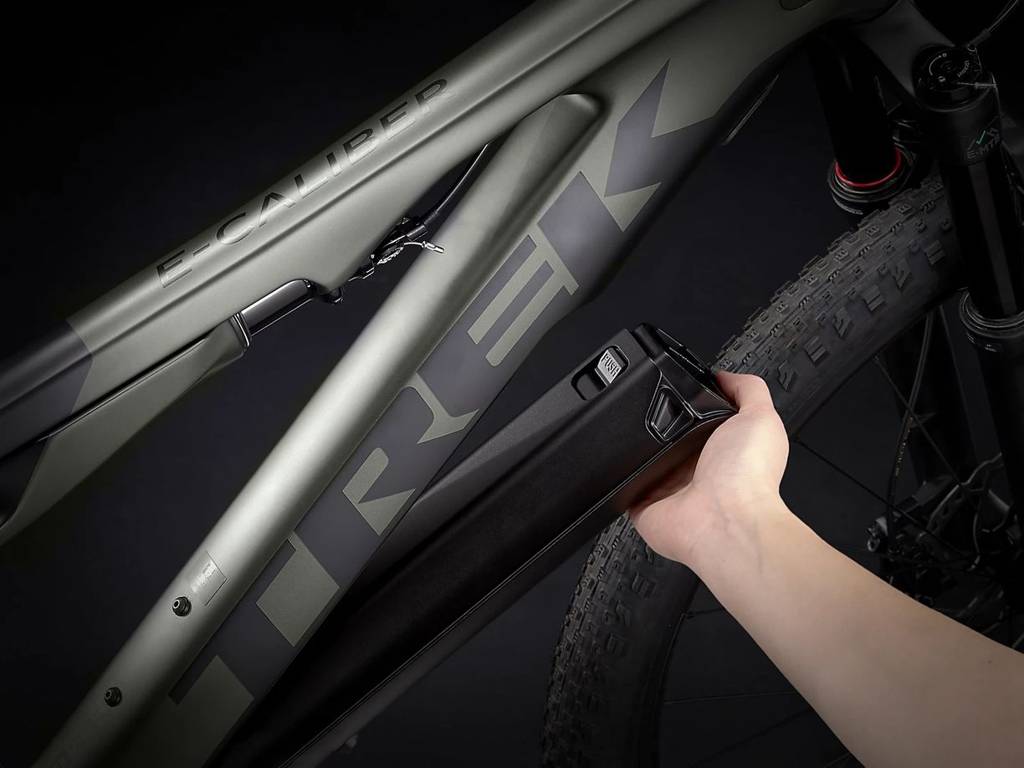

Fazua Ride Trail 50 motor Battery - Fazua Evation battery, 250 Wh Charger - Fazua Evation charger, 220-240V Controller - Fazua Remote bX
Weight Weight M
18.48 kg (with TLR sealant, no tubes) Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
