Atriði 2

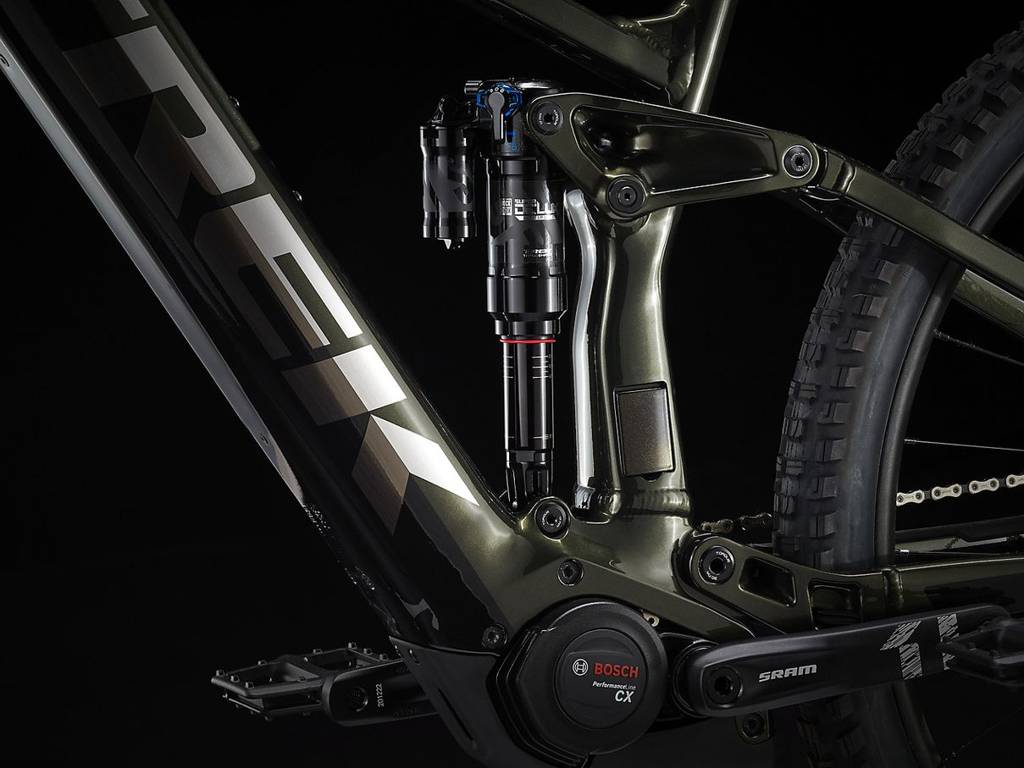

RE:aktiv with Thru Shaft works faster than a normal shock, so it tracks the ground better and keeps you in control
Atriði 3

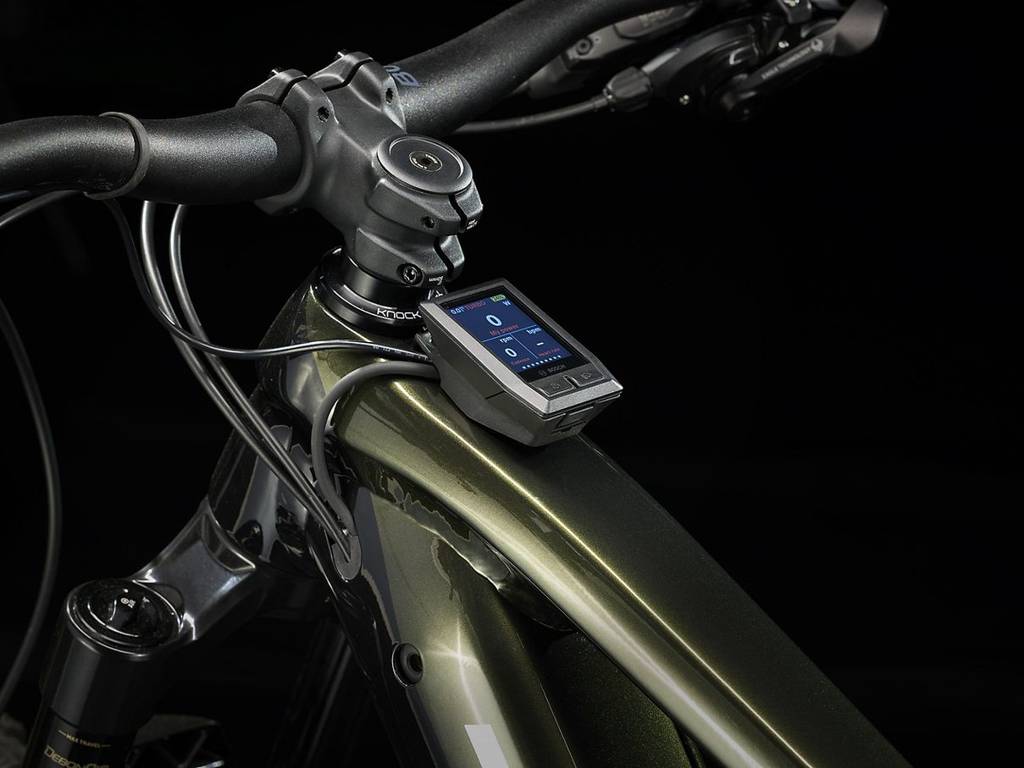

The full-colour Kiox display shows ride info, connects with your Bluetooth® enabled devices and has a built-in theft prevention feature
Atriði 4

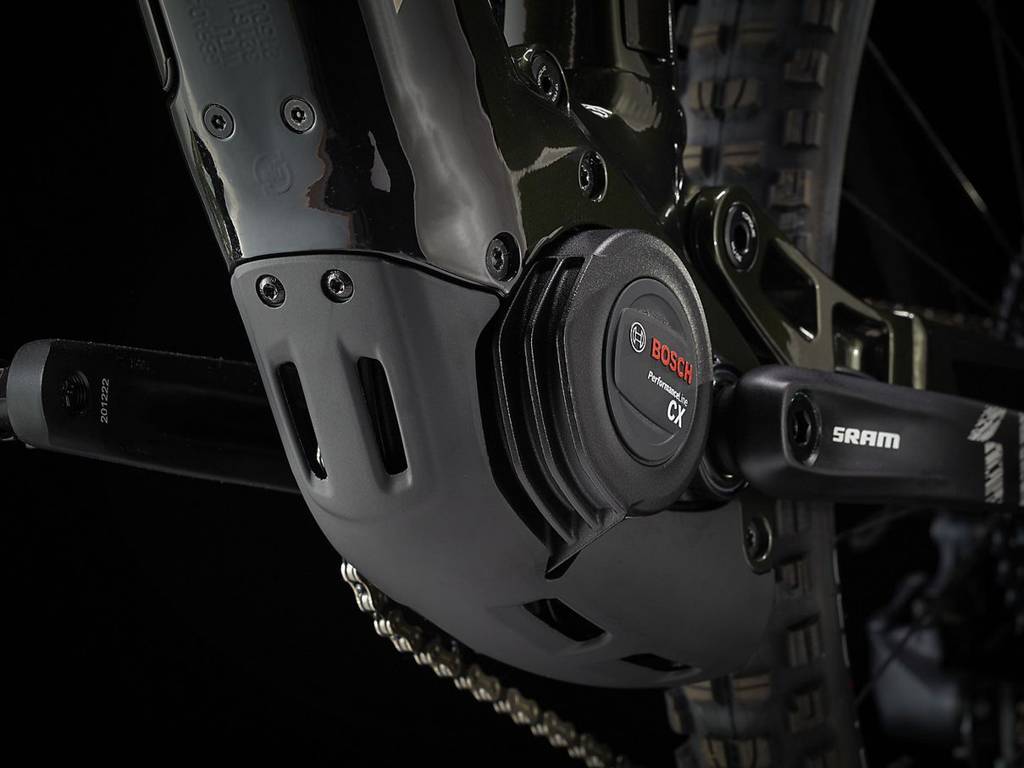

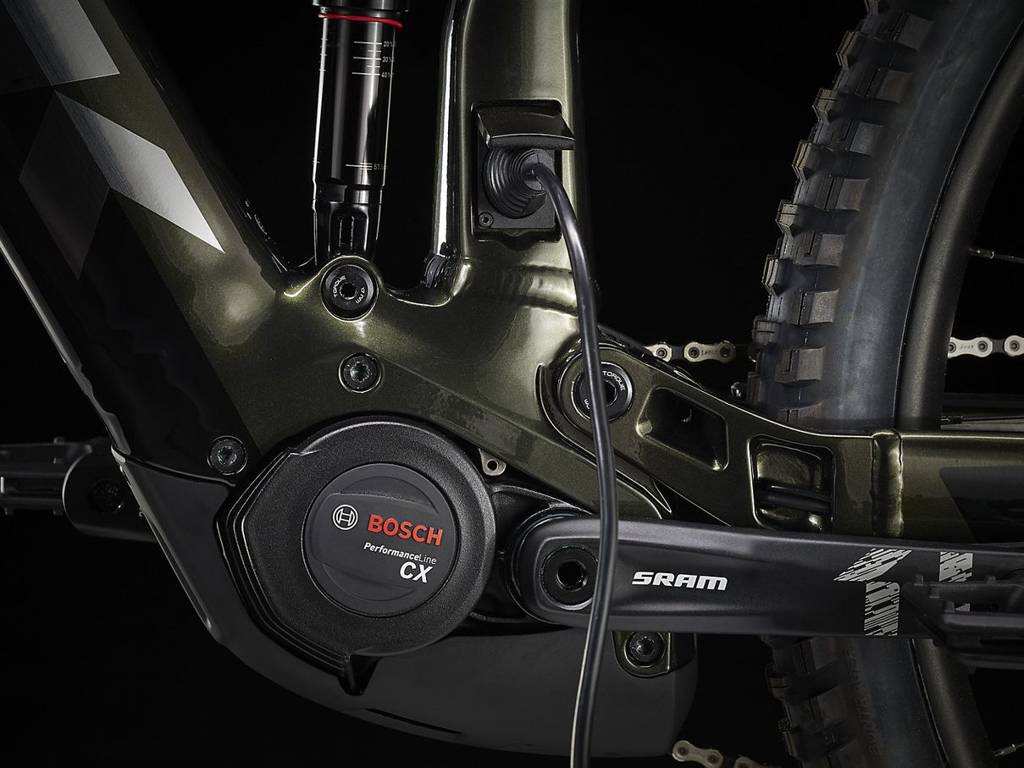

The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day. Rider-friendly features, like Walk Assist and eMTB mode, help you make the most of every ride
Atriði 5

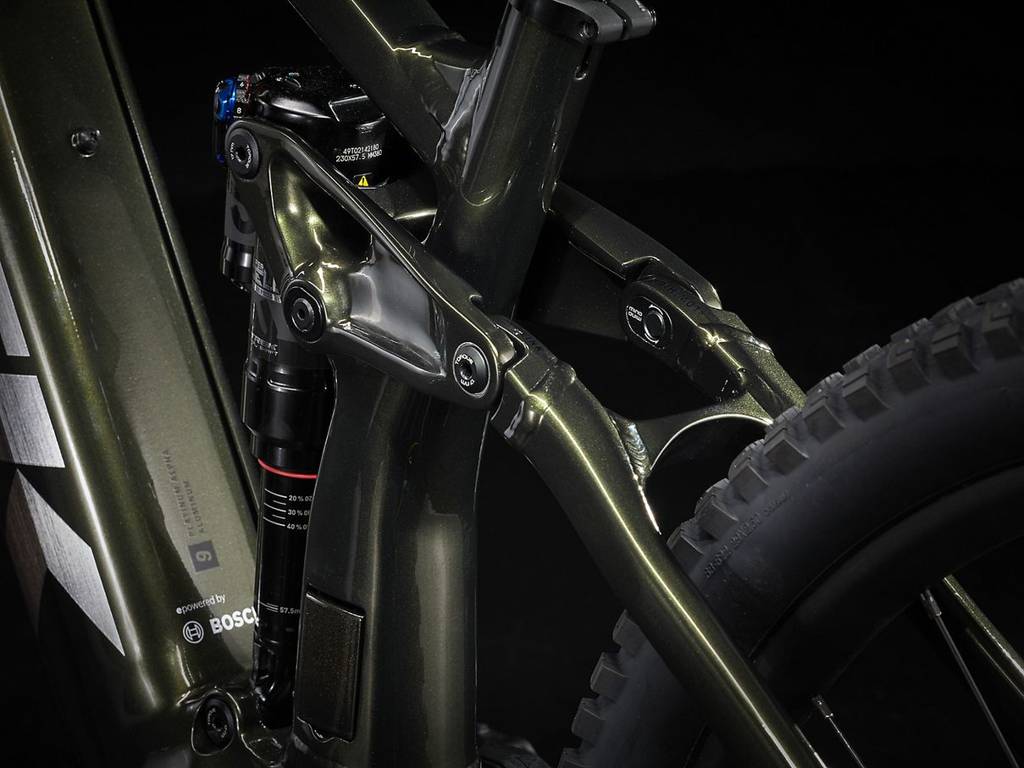

Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
Atriði 6

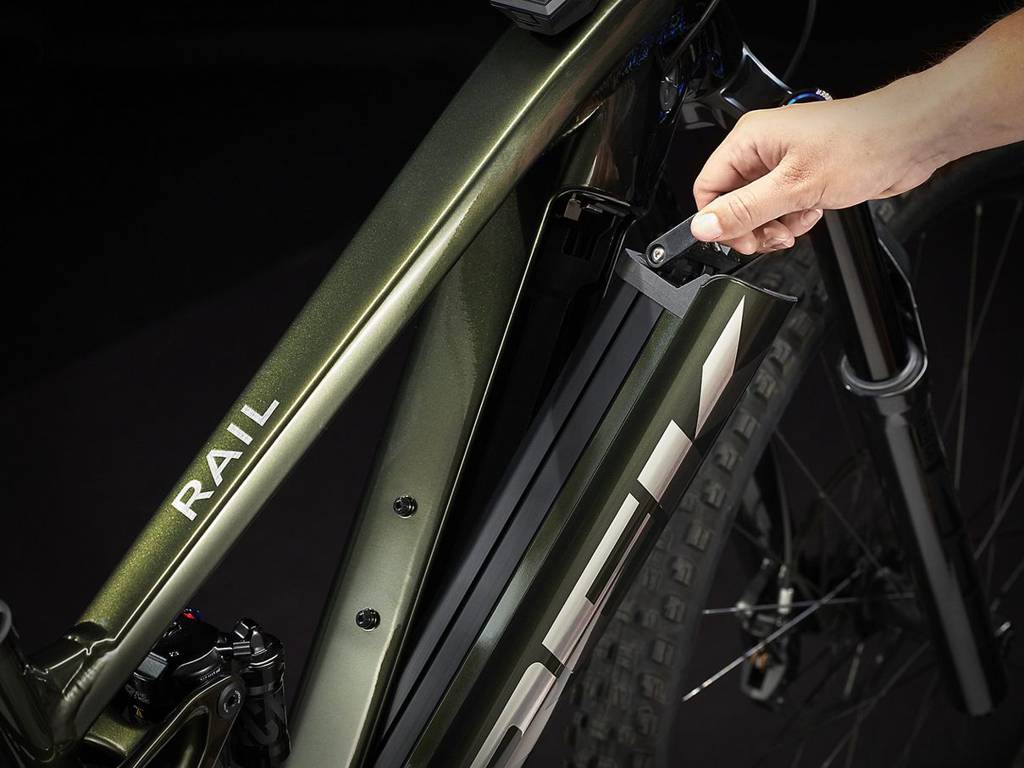

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock
NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tyre Size: S, M, L, XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre Size: S, M, L, XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Tyre part Size: S, M, L, XL
Bontrager TLR sealant, 180 ml/6 oz
Tyre part Size: S, M, L, XL
Bontrager TLR valve, 50 mm
Shifter
SRAM GX Eagle, 12-speed
Rear derailleur
SRAM GX Eagle
Crank
SRAM X1 1000, 34T, 165 mm length
Cassette
SRAM Eagle XG-1275, 10-52, 12-speed
Chain
SRAM GX Eagle, 12-speed
Pedal
VP-536 nylon platform
Saddle
Bontrager Arvada, hollow chromoly rails, 138 mm width
Seatpost Size: S
Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 31.6 mm, 340 mm length
Seatpost Size: M
Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 31.6 mm, 440 mm length
Seatpost Size: L, XL
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 480 mm length
Handlebar
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Atriði 11
Grips Bontrager XR Trail Elite, nylon lock-on
Atriði 12
Stem Bontrager Elite, 35 mm, 0-degree, 45 mm length
Brake Size: S, M, L, XL
SRAM Code R hydraulic disc
Brake Size: S, M, L, XL
SRAM Code R 4-piston hydraulic disc
Brake rotor
Size: S, M, L, XL - SRAM CenterLine, 6-bolt, round-edge, 180mm
Brake rotor
Size: S, M, L, XL - SRAM CenterLine, 6-bolt, round edge, 200 mm
Battery
Bosch PowerTube 625
Charger
Bosch standard 4A (220-240 V) charger
Weight
M - 23.42 kg (with TLR sealant, no tubes)
