Atriði 1
It's right for you if... You’re looking for a trail-specific e-MTB that’s designed to tackle the same tough terrain as regular trail bikes. You already know just how amazing e-MTBs are on the mountain, and want to invest in better components.
Atriði 2
The tech you get A burly alloy frame with 150 mm of rear travel and a 625 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including a Bluetooth® LED remote for easy connectivity and activity tracking through the eBike Flow app. A smooth-shifting 1x12 Shimano SLX/XT drivetrain, dropper post, powerful Shimano 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.
Atriði 3
The final word The Rail 7 features loads of upgraded parts, including the drivetrain, fork and wheels. Its long-range battery gives you all the power you want for packing in laps and miles of smiles.
Atriði 4
Why you'll love it
Atriði 5
The Alloy Rail Gen 3 features Bosch’s smart system with an LED remote that connects to the Bosch eBike Flow app for over-the-air system updates, customised motor tuning and more
Atriði 6

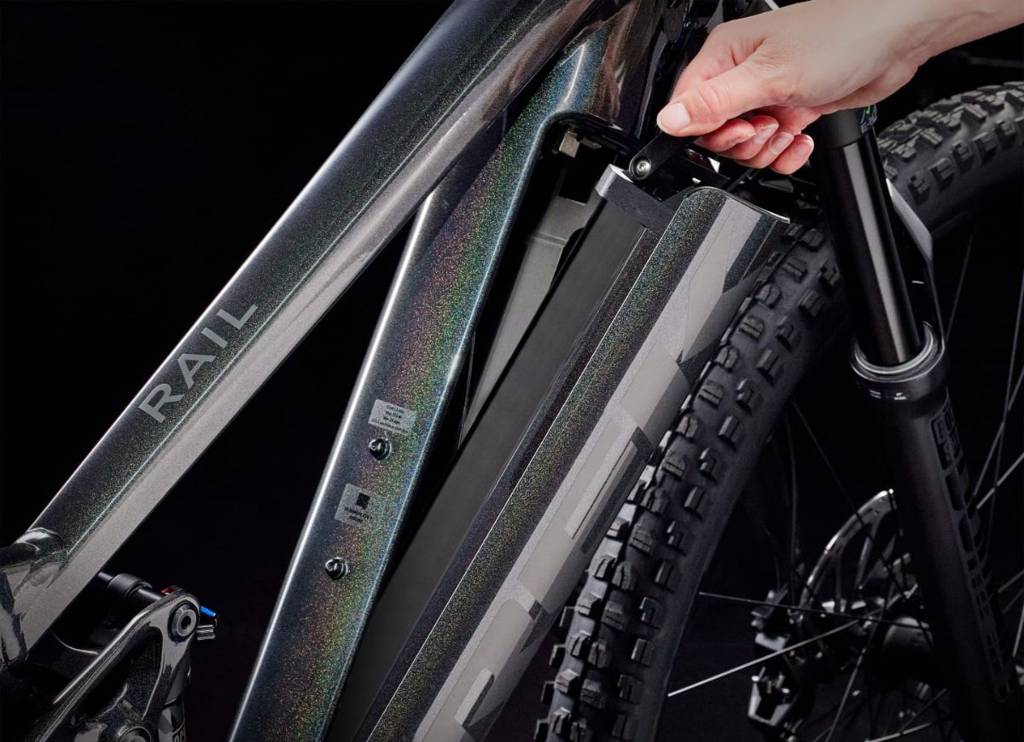

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage
Atriði 7
The Rail keeps your cockpit tidy by skipping a display, but smart system makes it easy to add one
Atriði 8
The controller has Walk Assist and an intelligent e-MTB mode that automatically delivers the right amount of power based on your terrain
Atriði 9

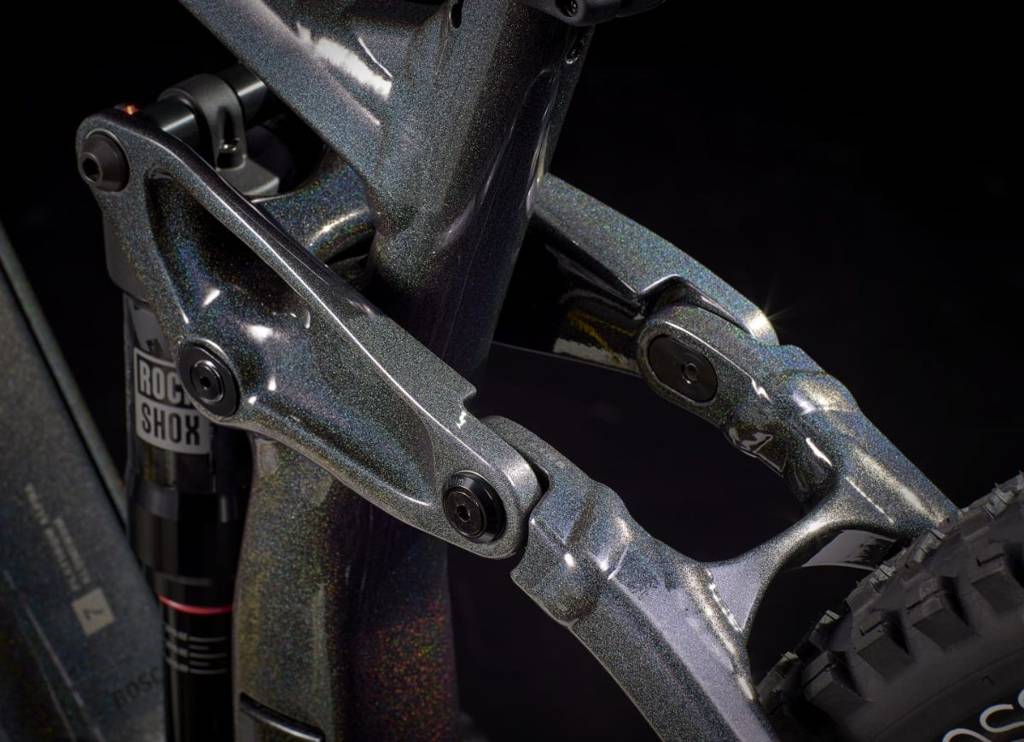

Made with the same hard-charging frame tech as our amazing trail bikes, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
Frame Size: S
Alpha Platinum Aluminium, curved top tube, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Frame Size: M, L, XL
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox Domain RC, DebonAir, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel

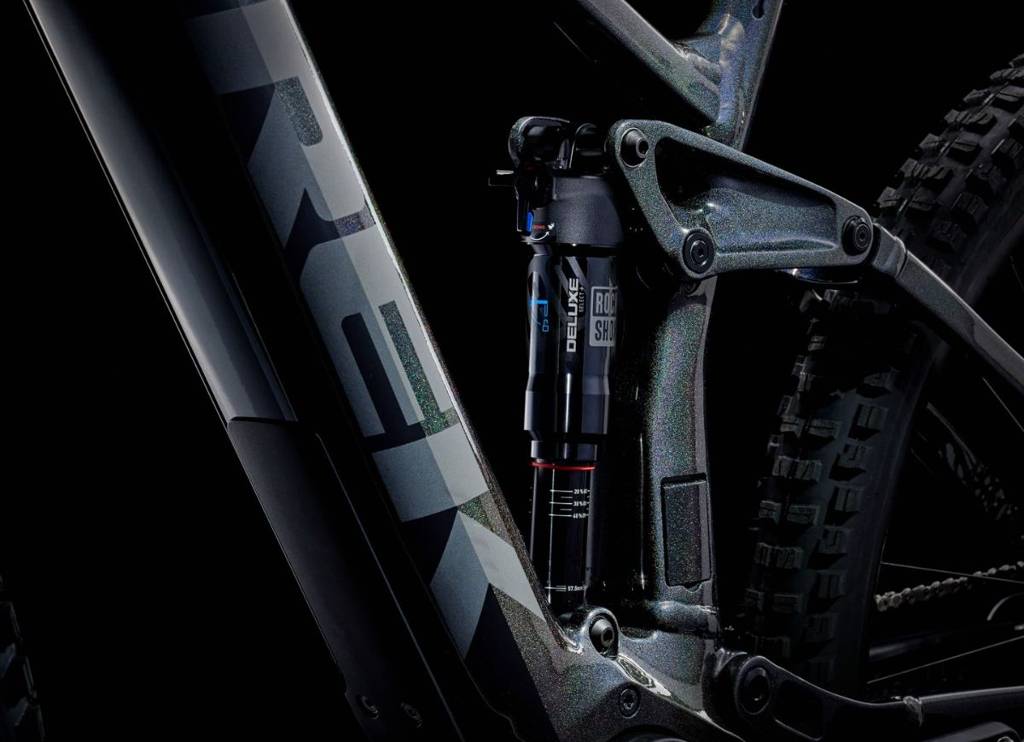

Shock
RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Max compatible fork travel
170mm (580mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.60", Fork: See manufacturer
Battery
Bosch PowerTube 625 Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Computer
Bosch LED remote, smart system

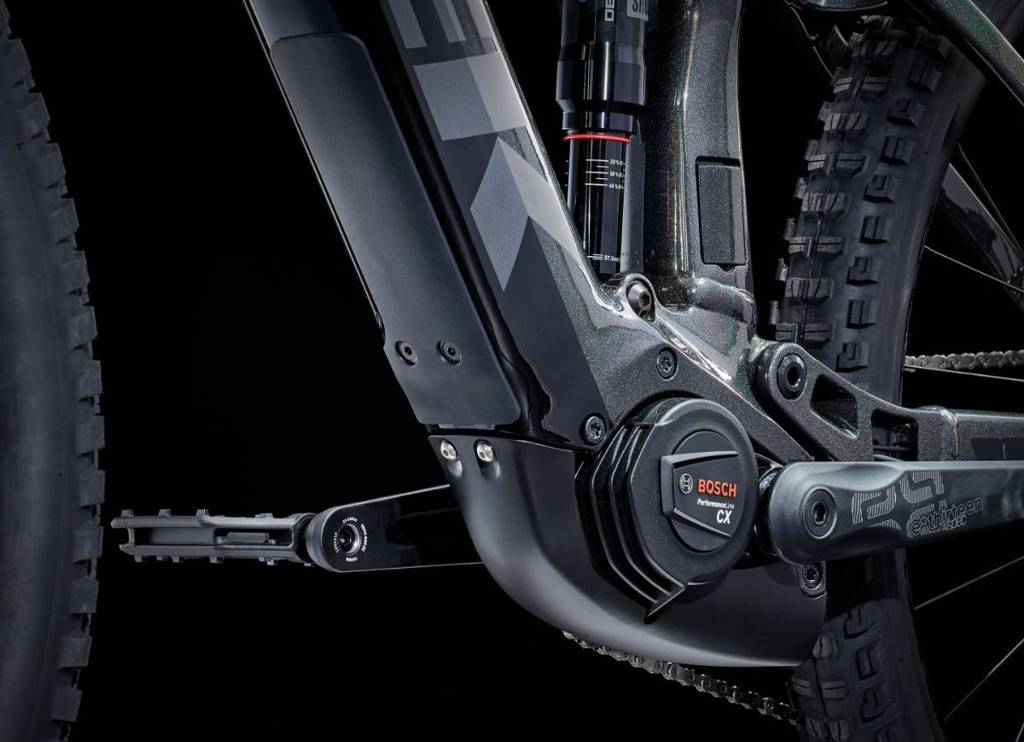

Motor
Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage
Crank
E*thirteen E*spec Plus, 165 mm length
Crank arm
E*thirteen E*spec Plus, 160 mm length
Chainring
E*thirteen E*spec, 34T alloy, 55 mm chainline
Cassette
Shimano Deore M6100, 10-51, 12-speed
Chain
Shimano Deore M6100, 12-speed
Pedal
VP-536 nylon platform
Atriði 15
Max. chainring size 1x: 34T
Saddle Size: S, M, L, XL
Bontrager Arvada, steel rails, 138 mm width
Saddle Size: S, M, L, XL
Bontrager Verse P3, steel rails
Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Seatpost Size: S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Seatpost Size: M, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length
Seatpost Size: M
Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length
Seatpost Size: L, XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, 0-degree, 50 mm length
Brake Size: S, M, L, XL
SRAM Code R 4-piston hydraulic disc
Brake Size: S, M, L, XL
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor Size: S, M, L, XL
SRAM CentreLine, 6-bolt, round edge, 200 mm
Brake rotor Size: S, M, L, XL
Shimano RT76, 6-bolt, 203 mm
Brake Set
SRAM Code R 4-piston hydraulic disc
Rotor size
Max brake rotor sizes - Frame: 200mm, Fork: see fork manufacturer
Weight
M - 23.95 kg (with TLR sealant, no tubes)
Atriði 18
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
