Atriði 2
The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day
Atriði 3
Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary
Atriði 4
The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
Atriði 5

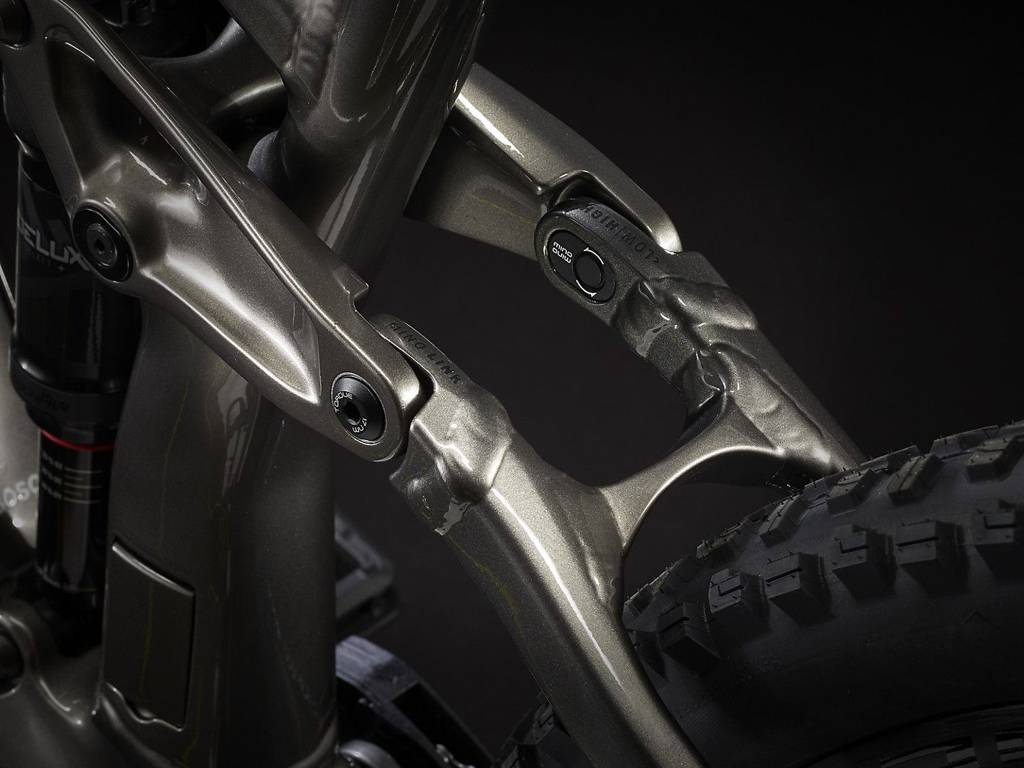

Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
Atriði 6

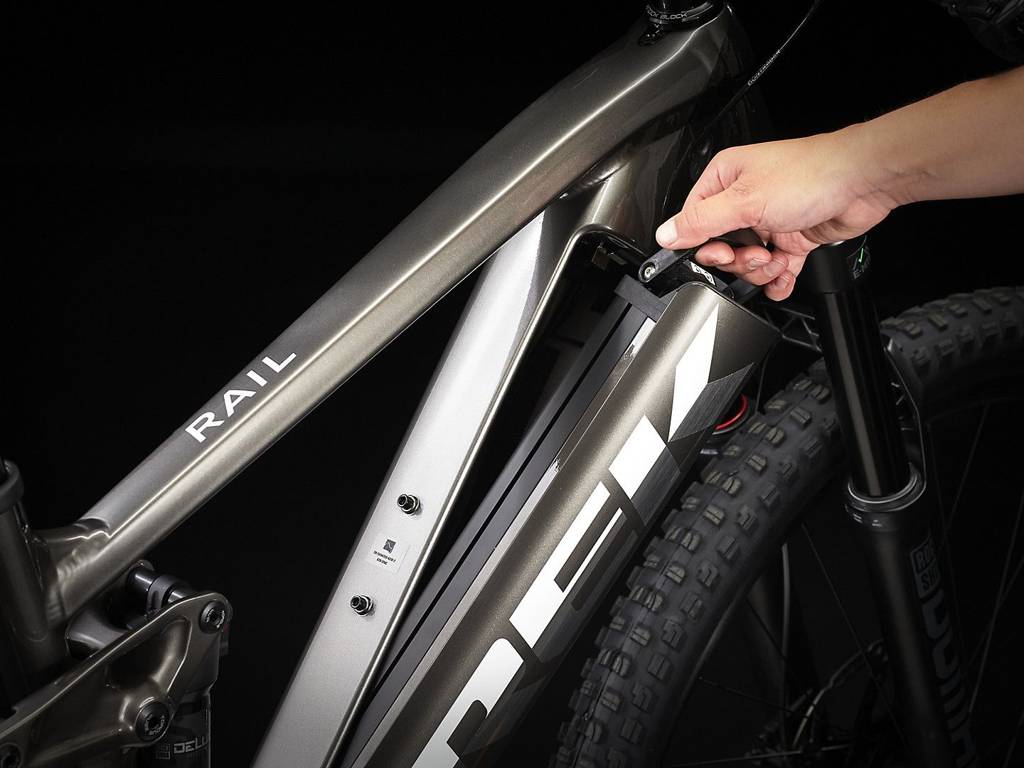

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Frame

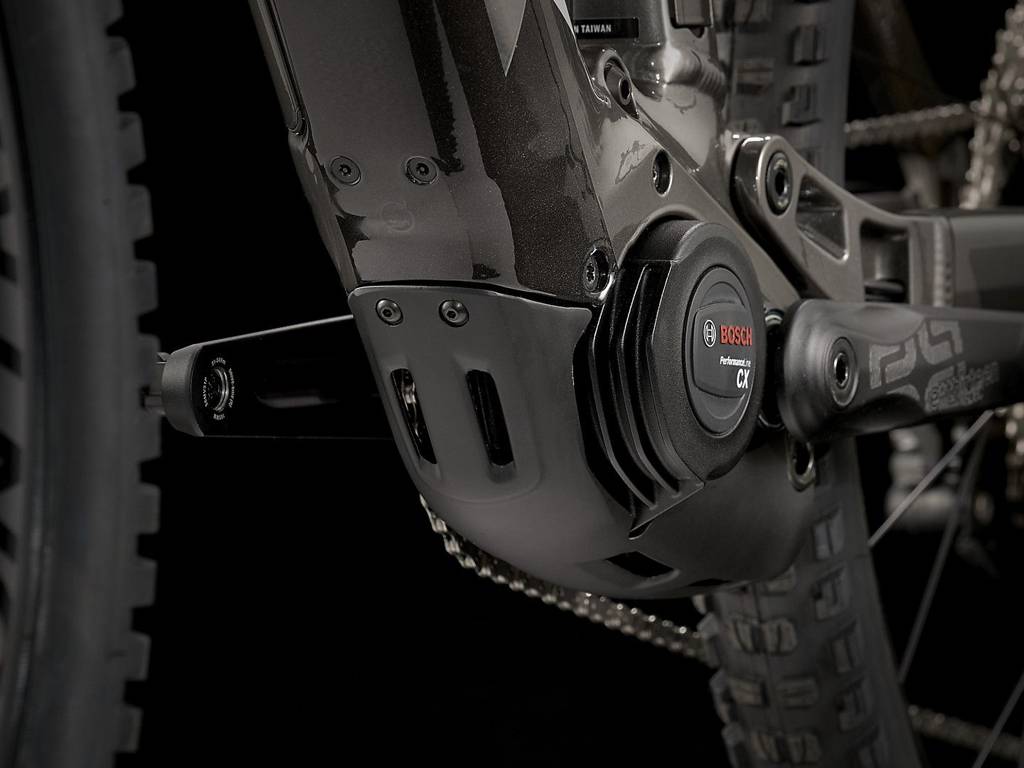

Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
Fork
RockShox Domain RC, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock
RockShox Deluxe Select+, 230x57.5 mm
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Tyre
Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage, 51T max cog
Crank arm
E*thirteen E*spec Plus, 34T, 165 mm length
Cassette
Shimano Deore M6100, 10-51, 12-speed
Pedal
VP-536 nylon platform
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Seatpost Size: M, L, XL
TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 445 mm length
Handlebar
Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Atriði 12
Battery Bosch PowerTube 625Wh
Atriði 13
Charger Bosch standard 4A, 220–240V
Atriði 14
Controller Bosch Purion
Atriði 15

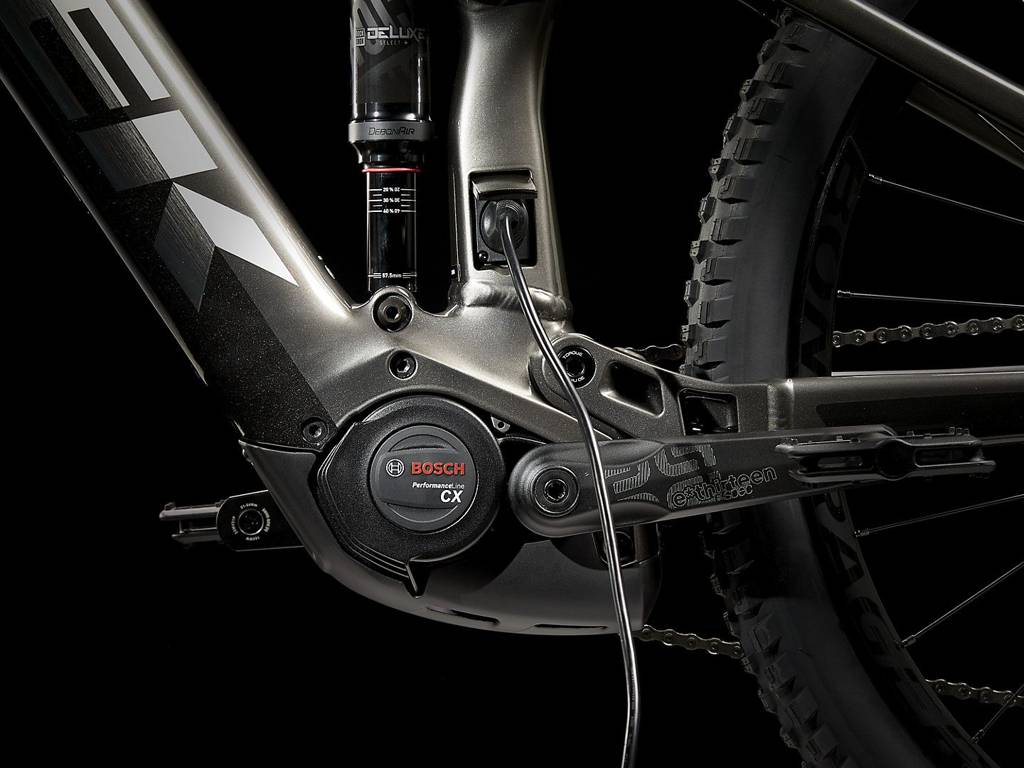

Motor Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h
