Atriði 2
Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary
Atriði 3
The bigger battery means you can adventure for longer between charges
Atriði 4

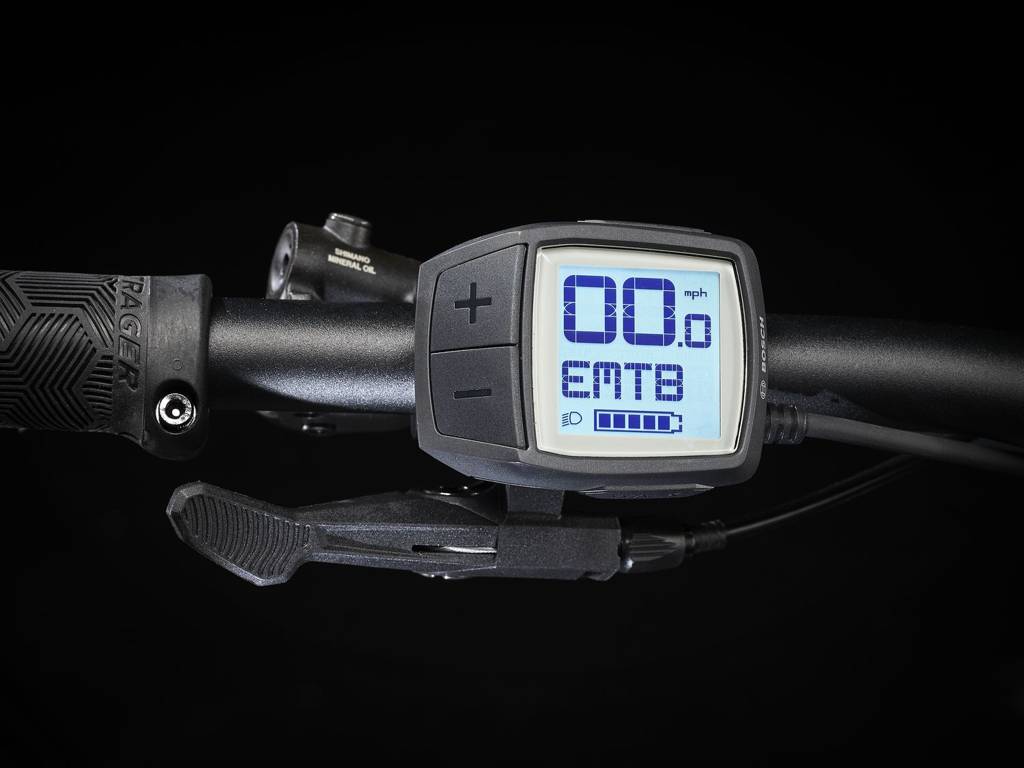

The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
Atriði 5

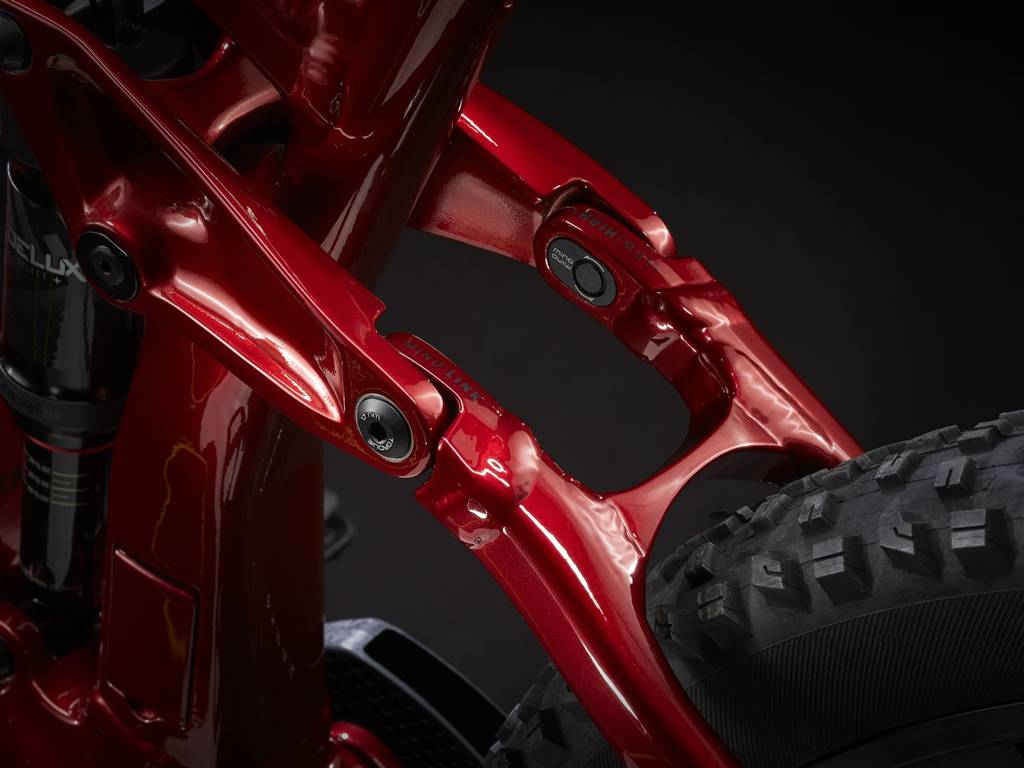

Made with the same hard-charging frame tech as Remedy, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
Atriði 6

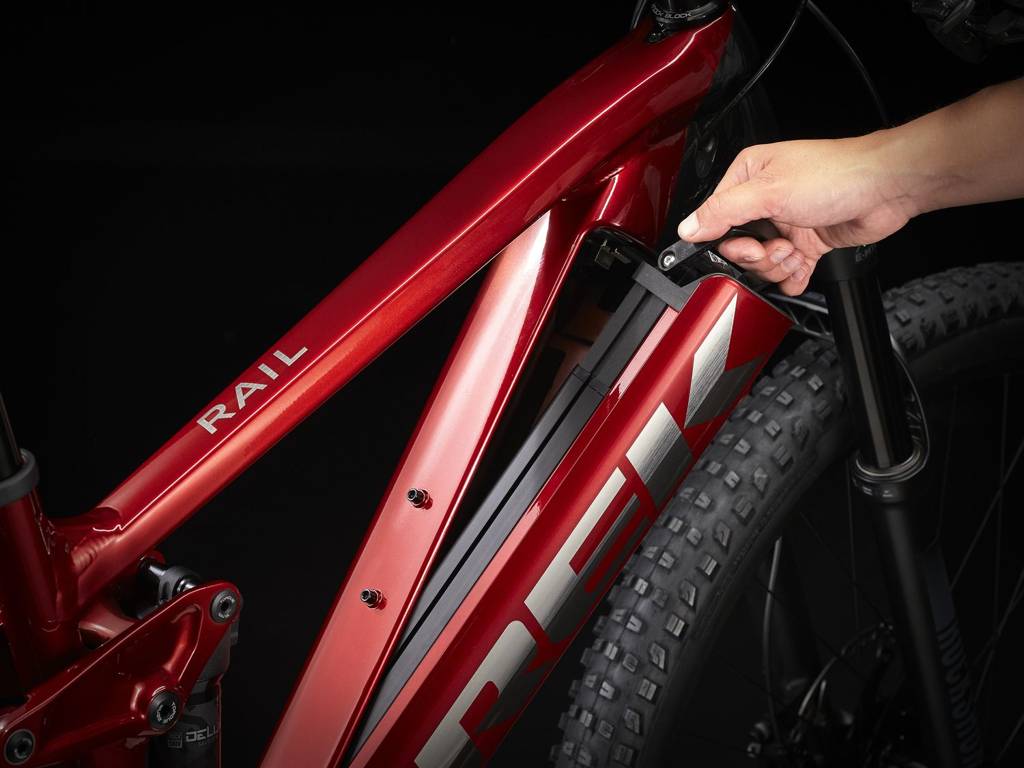

Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage
Fork
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Hub front
Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Rim
Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve
Tyre
Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"
Shifter
Shimano Deore M6100, 12-speed

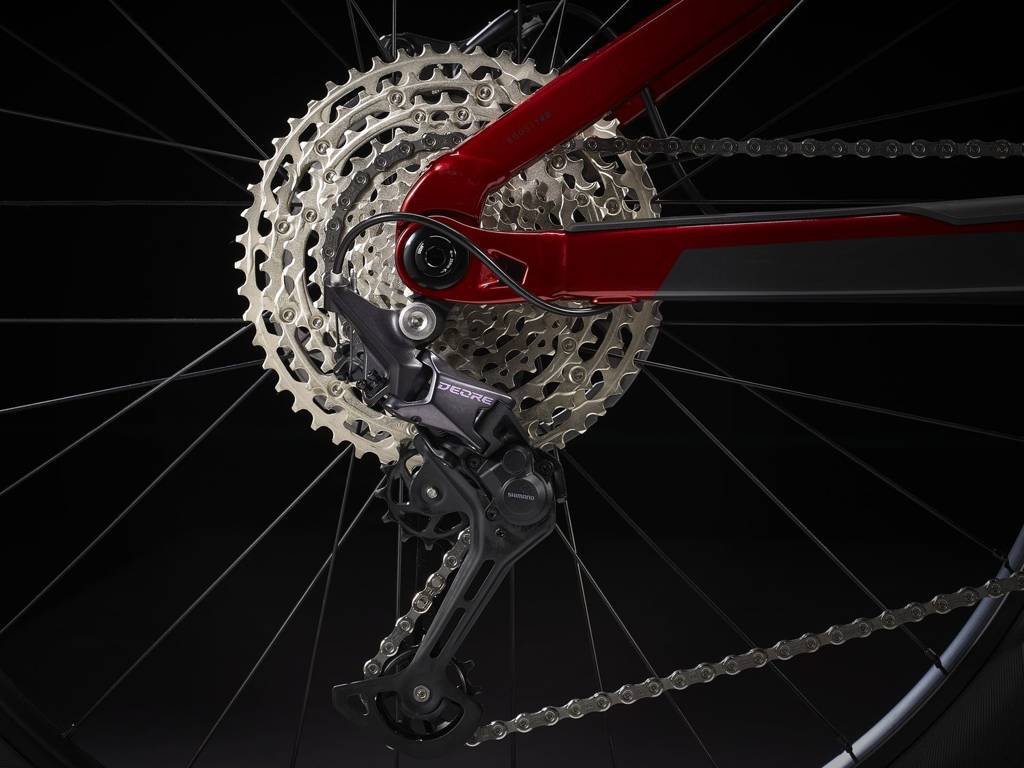

Rear derailleur
Shimano Deore M6100, long cage
Crank arm
E*thirteen E*spec Plus, 34T, 165 mm length
Cassette
Shimano Deore M6100, 10-51, 12-speed
Pedal
VP-536 nylon platform
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: S
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Seatpost Size: S
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
Seatpost Size: M, L, XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Seatpost Size: M, L, XL
Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Battery
Bosch PowerTube 625Wh
Charger
Bosch compact 2A (100-240 V) charger
