Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB 2.0), tapered headtube, guided internal routing, Motor Armor, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, 34.9 mm seat tube, ABP, UDH, rack and mudguard mounts, Boost 148, 120 mm travel
Fork
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 130mm travel
Shock
Fox Float Rhythm, 2-position damper, 210x50 mm
Wheel front Size: S
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5"
Wheel front Size: M , L , XL
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
Wheel rear Size: S
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5''
Wheel rear Size: M , L , XL
Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29''
Skewer rear
Bontrager Switch thru axle, removable lever
Tyre Size: S
Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40"
Tyre Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
Frame: 29x2.50" (S: 27.5x2.50"), Fork: see manufacturer
Battery
Bosch PowerTube 800 Wh, smart system
Charger
Bosch standard 4A, 230V, smart system
Computer Size: S , M , L , XL
Bosch Kiox 300, smart system
Computer Size: S , M , L , XL
Bosch LED remote, smart system
Motor
Bosch Performance Line CX, 20 mph / 32 km/h max assist (25 km/h max assist in EU and APAC)

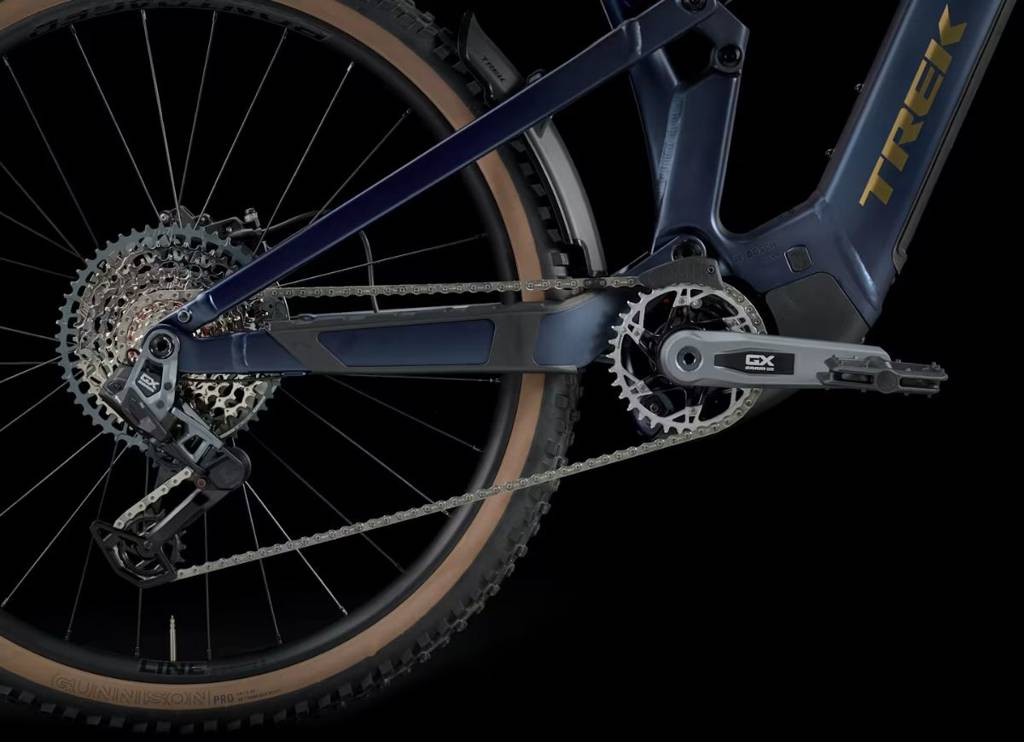

Rear derailleur
SRAM GX Eagle AXS, T-Type
Crank
SRAM GX, 160 mm length
Chainring
SRAM T-Type, 34T, steel
Cassette
SRAM Eagle XS-1275, T-Type,10-52, 12-speed
Chain
SRAM GX Eagle, T-Type, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
1x: 38T
Saddle
Bontrager Verse P3, steel rails
Seatpost Size: S
Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length
Seatpost Size: M , L , XL
Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
Handlebar
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length
Head set
FSA IS-2, 1-1/8" top, 1.5" bottom
Brake
SRAM DB 8 4-piston hydraulic disc
Rotor size
Max brake rotor sizes – Frame: 220 mm, min 180 mm, Fork: see fork manufacturer
Mudguard
Trek custom mudguard
Weight
M – 24.48 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
