Atriði 2
For e-MTB, full suspension is a game-changer: it soaks up rugged terrain, so you can ride the Bosch pedal-assist system to its full potential
Atriði 3
The dropper post lets you lower your saddle on the fly so it's out of the way on descents
Atriði 4
Wide Line Comp 30 wheels provide more tyre support for better traction and control, and they come completely tubeless to save weight and prevent flats
Atriði 5
The full-colour Kiox controller displays ride info, connects with your Bluetooth-enabled devices and has a built-in theft prevention feature
Atriði 6
Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy to remove the battery without tools and lets you mount a water bottle cage – even on full suspension e-MTBs
Frame
Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, internal routing, Motor Armour, magnesium rocker link, rack and mudguard mount, ABP, Boost148, 100 mm travel
Fork Size: XS , S
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 100 mm travel
Size: M , L , XL
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 120 mm travel
Shock
RockShox SID Lux Select+, 190x45 mm
Max compatible fork travel
120mm (XS & S: 520mm axle-to-crown, M & up: 545mm axle-to-crown)
Wheel front
Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Hub front
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Hub rear
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Line Comp 30, Tubeless Ready, 28-hole, Presta valve
Spokes
DT Swiss Champion, J-Bend, Black
Max tyre size
Frame: 29x2.40" (XS & S: 27.5x2.60")
Shifter
Shimano SLX M7100, 12-speed
Rear derailleur
Shimano XT M8100, long cage, 51T max cog
Crank arm
E*thirteen E*spec Plus, 34T, 165 mm length
Cassette
Shimano SLX M7100, 10-51, 12-speed
Chain
Shimano SLX M7100, 12-speed
Pedal
VP-536 nylon platform
Max. chainring size
Max: 46T, Min 34T
Saddle
Bontrager Arvada, steel rails, 138 mm width
Seatpost Size: XS , S , M
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Size: L , XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
Handlebar
Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
Grips
Bontrager XR Trail Comp, nylon lock-on
Stem Size: XS , S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M , L , XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Brake
Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor
Shimano RT66, 6-bolt, 203 mm
Battery
Bosch PowerTube 625Wh
Charger
Bosch standard 4A (220-240 V) charger
Controller
Bosch Kiox with Anti-theft solution

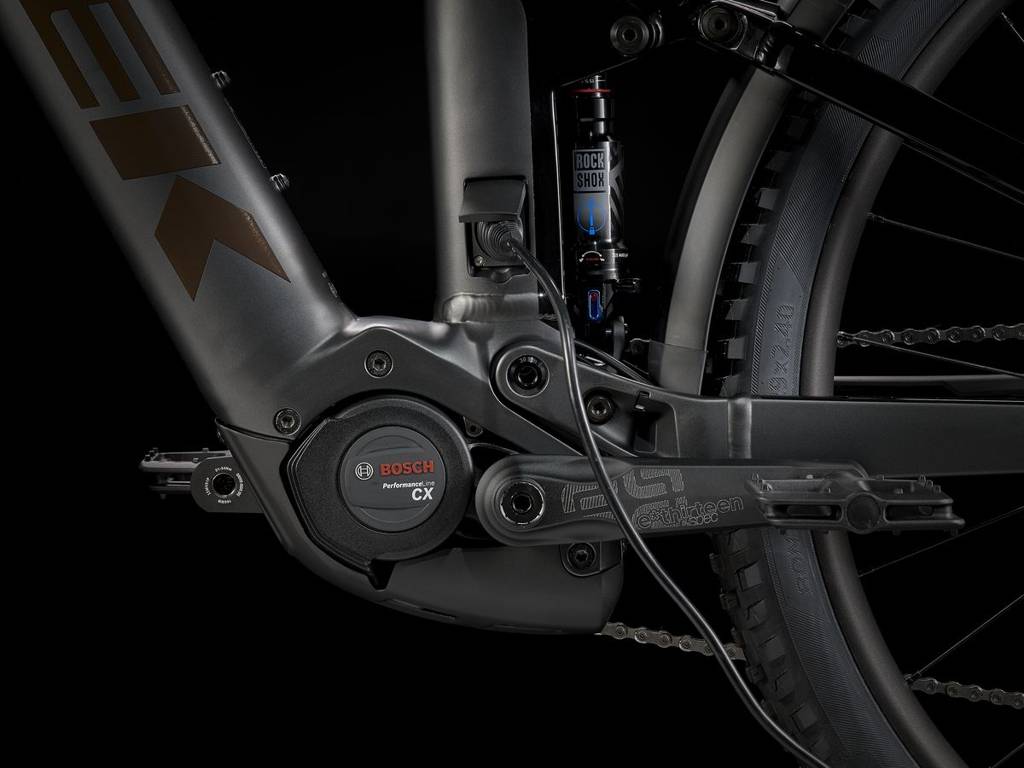

Motor
Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h
Weight
M - 24.37 kg (with TLR sealant, no tubes)
