Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR

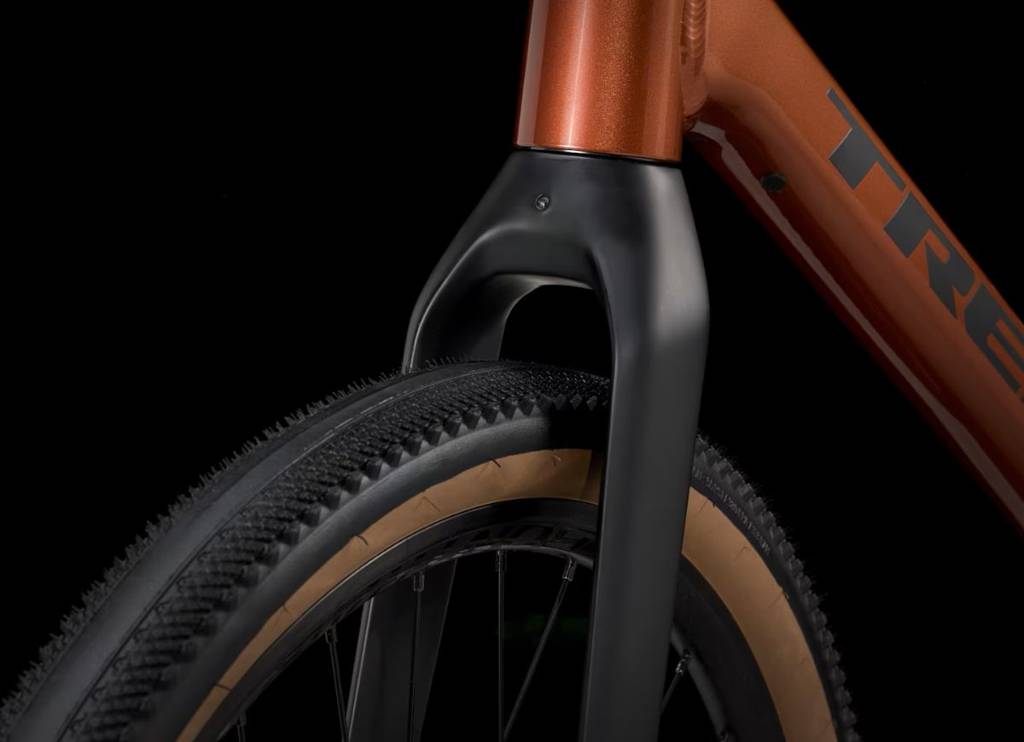

Fork
Dual Sport carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 100x5 mm
Skewer front
139x5 mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50 mm
Shifter
Shimano CUES U6000 w/optical gear display, 10-speed

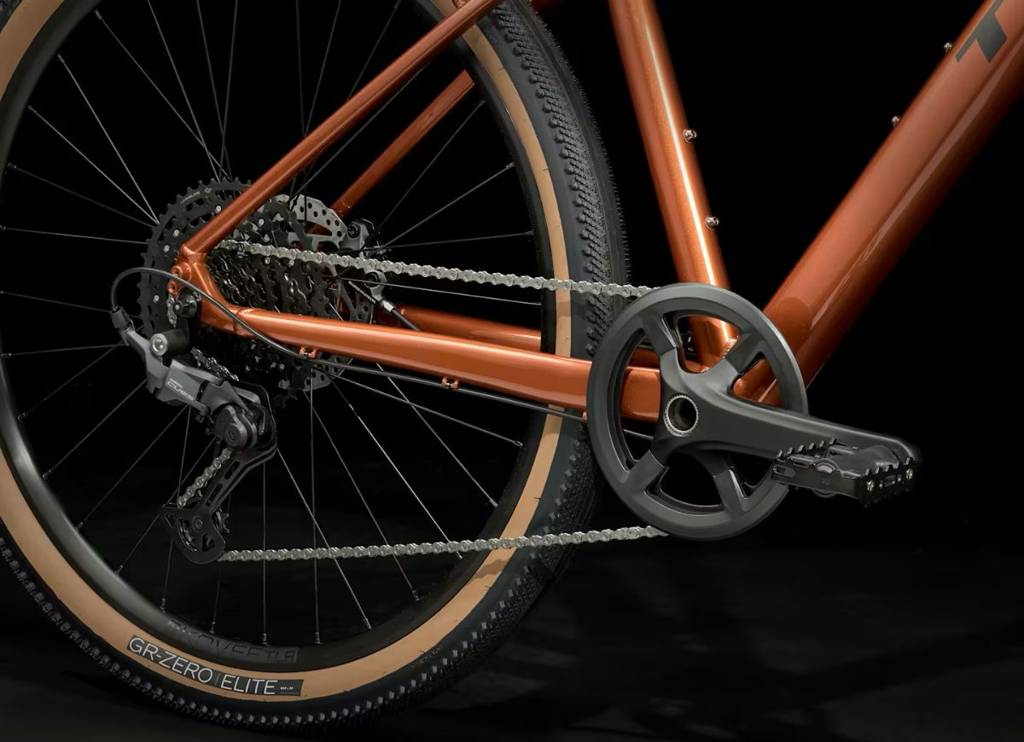

Rear derailleur
Shimano CUES U6000 GS
Crank Size: XS, S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Crank Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
Pedal
Wellgo nylon body, alloy cage
Max. chainring size
1x: 42T, 2x/3x: 48T
Seatpost
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

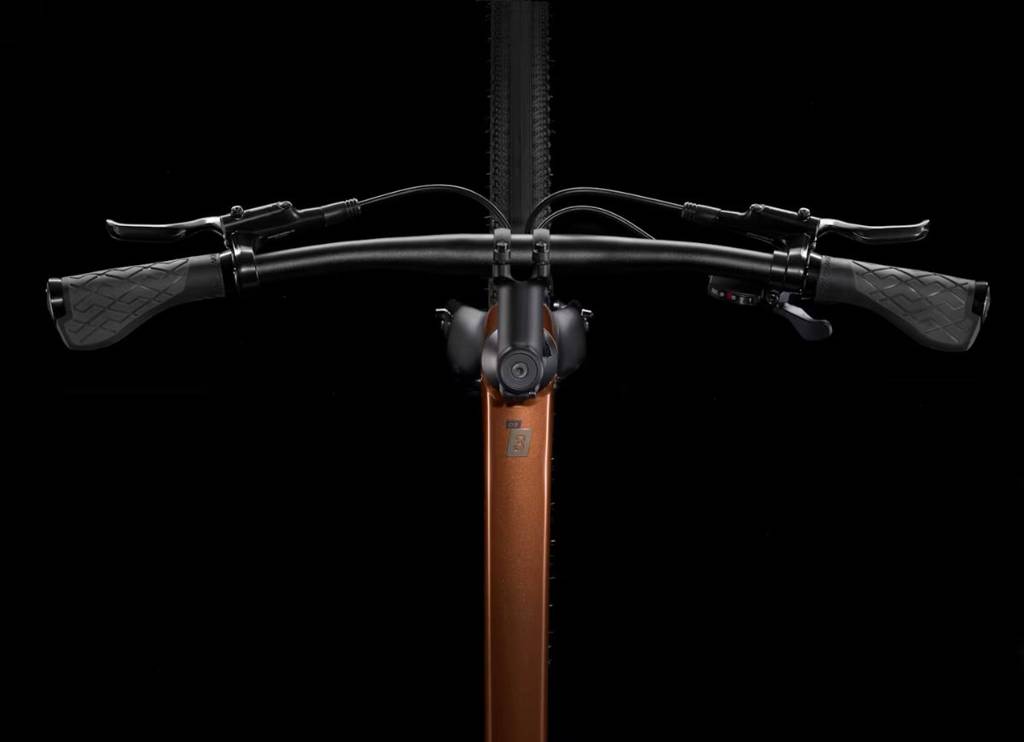

Handlebar Size: XS, S
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Handlebar Size: M, L
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Handlebar Size: XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width
Grips
Bontrager XR Endurance Elite

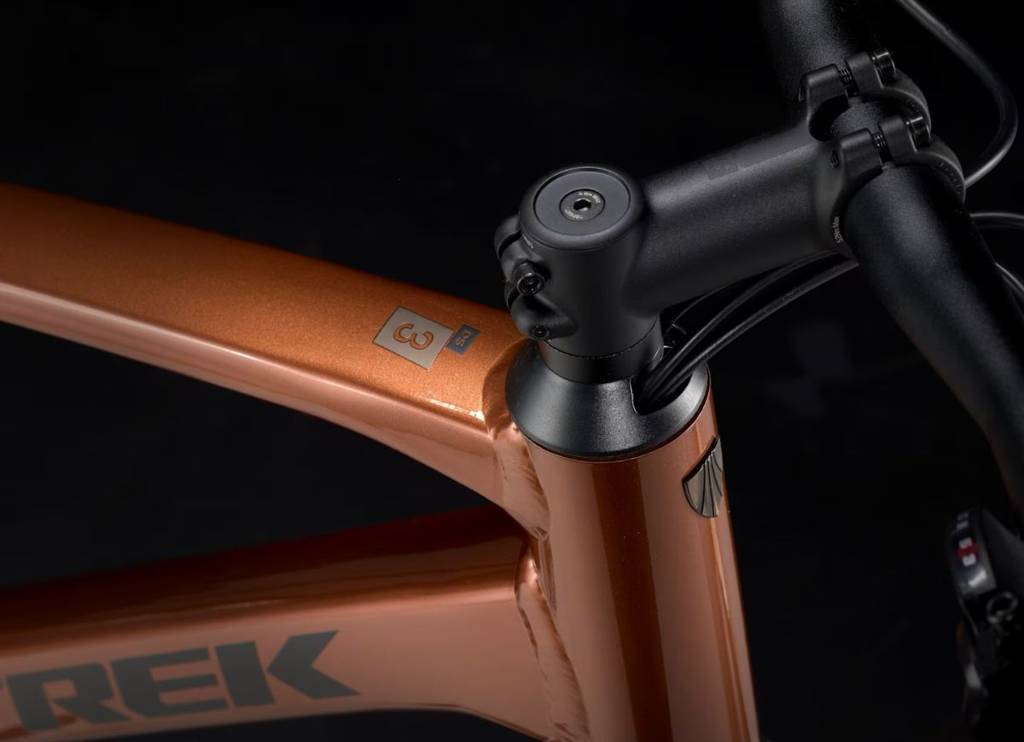

Stem Size: XS, S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: M, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length

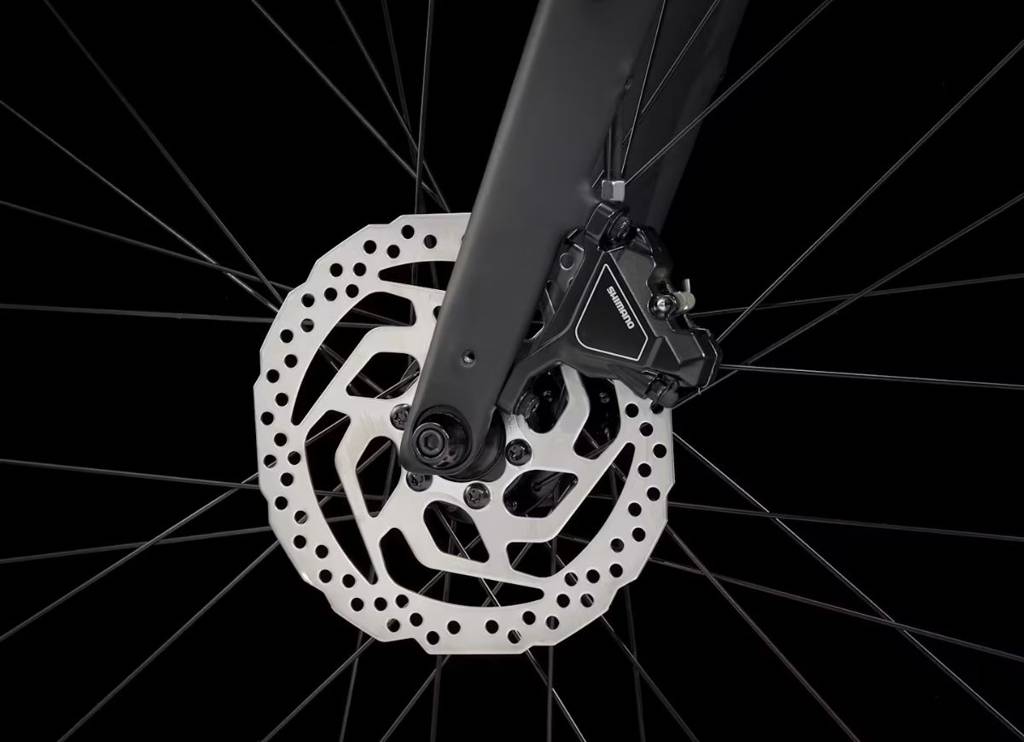

Brake
Shimano hydraulic disc, MT201 lever, UR300 calliper
Brake rotor
Shimano RT26, 6-bolt, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
