Atriði 1
Why you'll love it
Atriði 2
Stiff wheels and wide tyres give you the terrain-smoothing comfort and confidence of a suspension fork without the added weight
Atriði 3
The 1x drivetrain gives you all the gears you need and none you don’t
Atriði 4
Versatile gravel tyres are fast on the road and grippy on rougher terrain
Atriði 5
The cables are routed internally, which protects them from the elements and adds to the bike's sleek look
Frame
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount. 135x5 mm QR

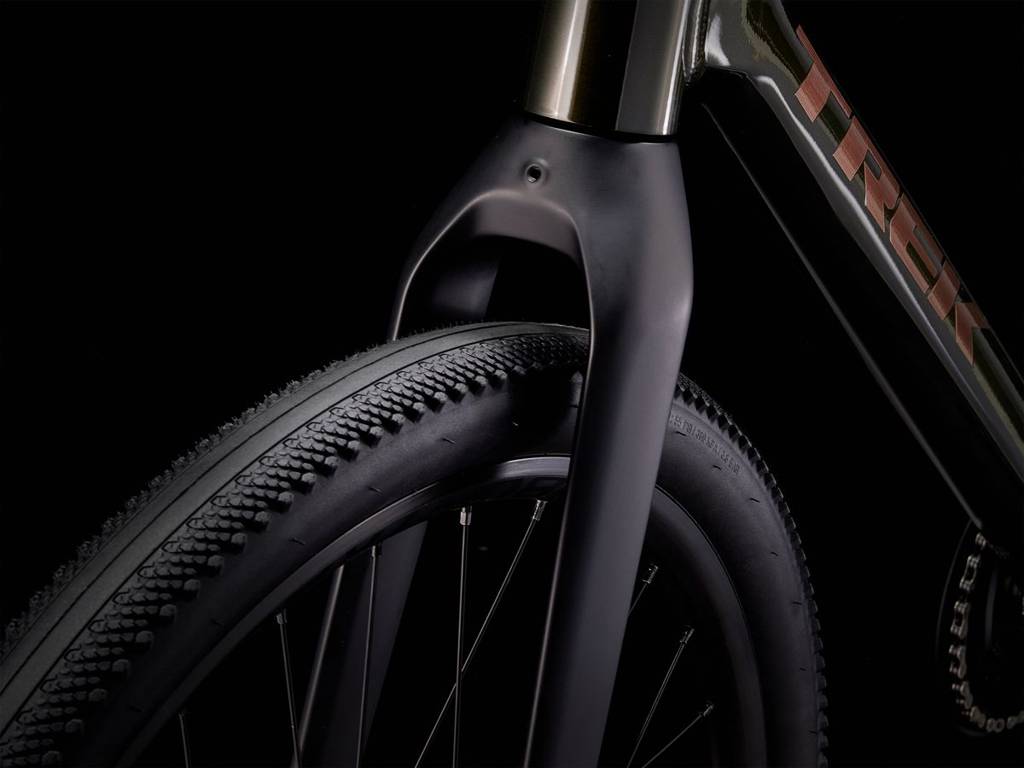

Fork
Dual Sport carbon, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm QR
Hub front
Formula DC-20, alloy, 6-bolt, 5x100 mm QR
Skewer front
139x5 mm bolt-on
Hub rear
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rim
Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Tyre
Bontrager GR0 Expert, wire bead, puncture protection, 60 tpi, 650x50c
Shifter
Shimano Deore M4100, 10 speed
Rear derailleur
Shimano Deore M5120, long cage
Crank Size: S, M
Prowheel alloy, 40T narrow-wide ring, 170 mm length
Crank Size: L, XL
Prowheel alloy, 40T narrow-wide ring, 175 mm length
Cassette
Shimano Deore M4100, 11-46, 10-speed
Pedal
Wellgo nylon body, alloy cage
Atriði 9
Max. chainring size 1x: 42T, 2x/3x: 48T
Atriði 11
Saddle Bontrager H1
Atriði 12
Seatpost Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length

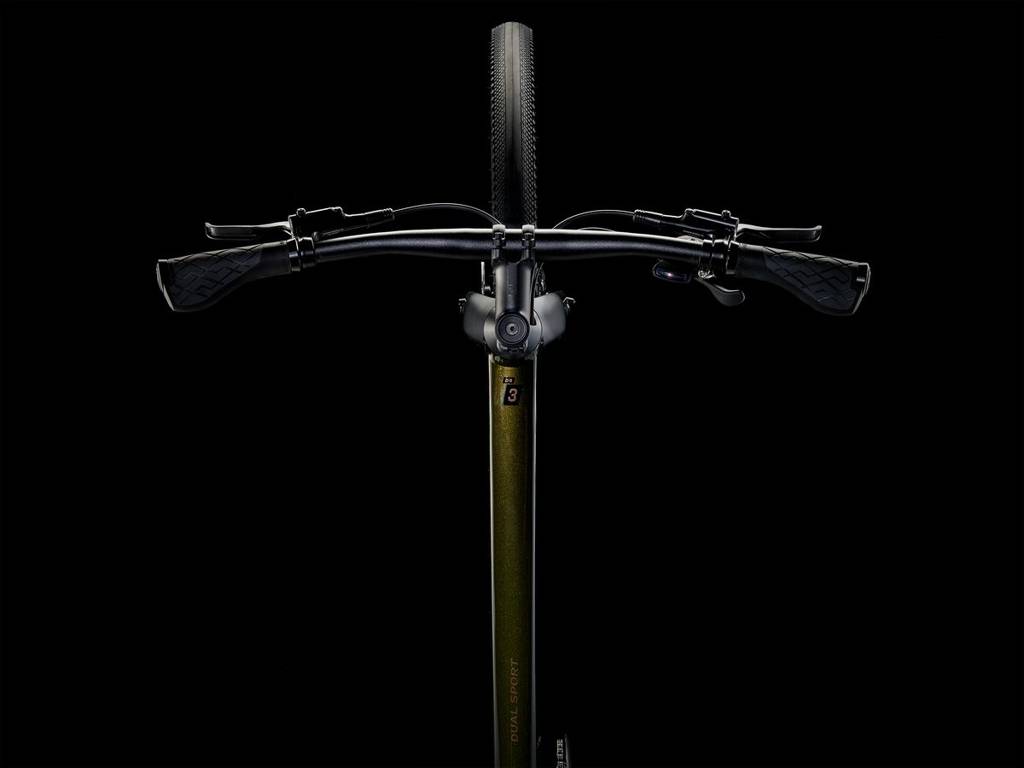

Handlebar Size: S
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Handlebar Size: M, L
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
Handlebar Size: XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width
Atriði 13

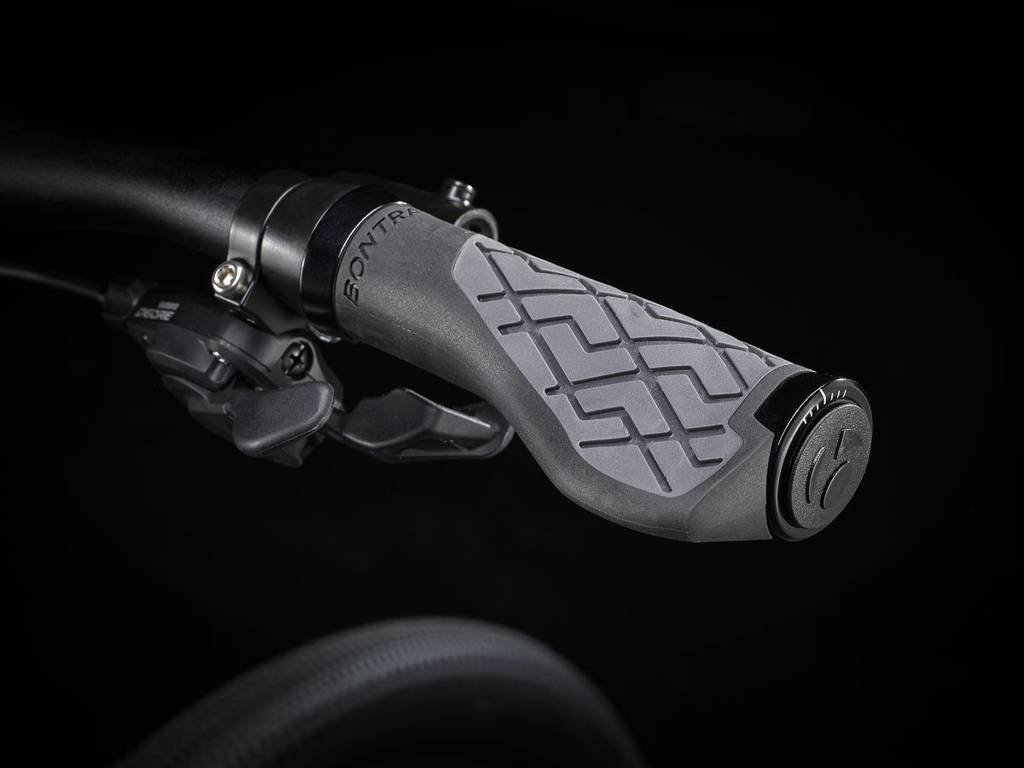

Grips Bontrager XR Endurance Elite

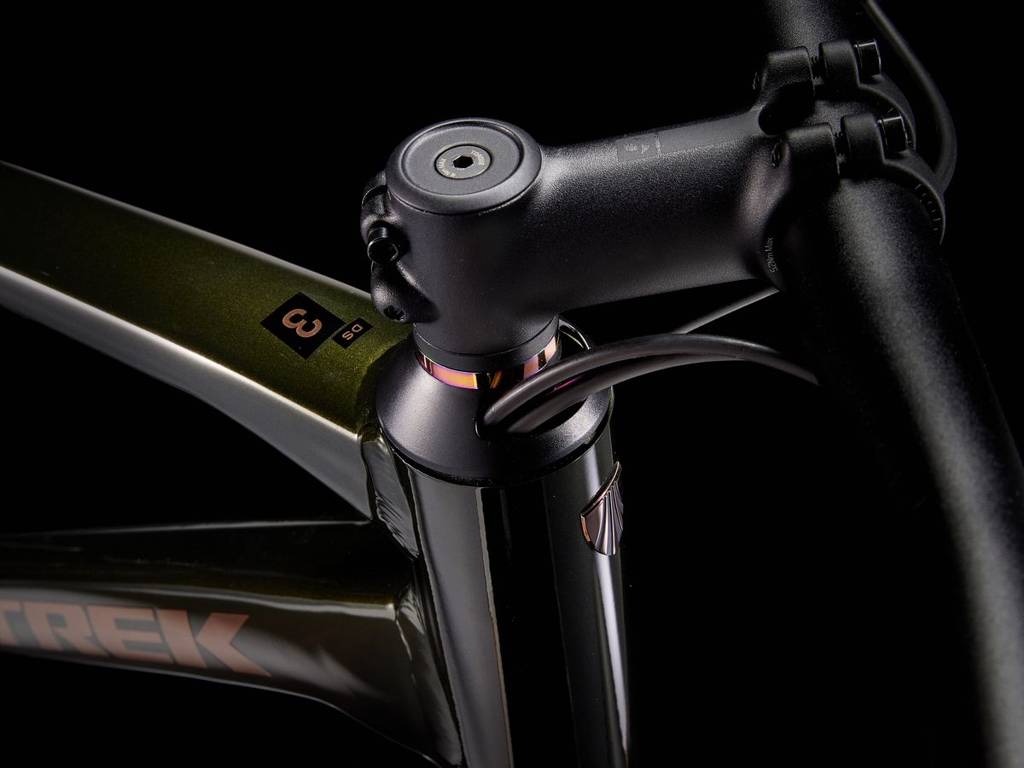

Stem Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: M, L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Atriði 14

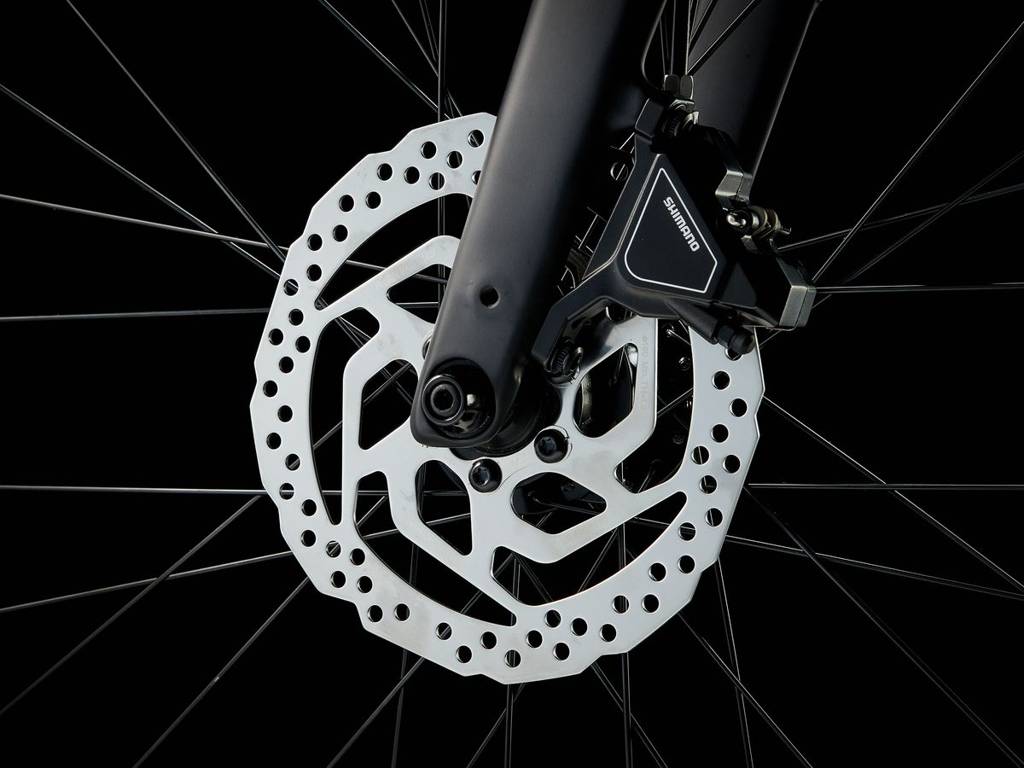

Brake Shimano hydraulic disc, MT201 lever, UR300 calliper
Atriði 15
Brake rotor Shimano RT26, 6-bolt,160 mm
Atriði 16
Rotor size Max brake rotor size: 160 mm
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
