Frameset Frame

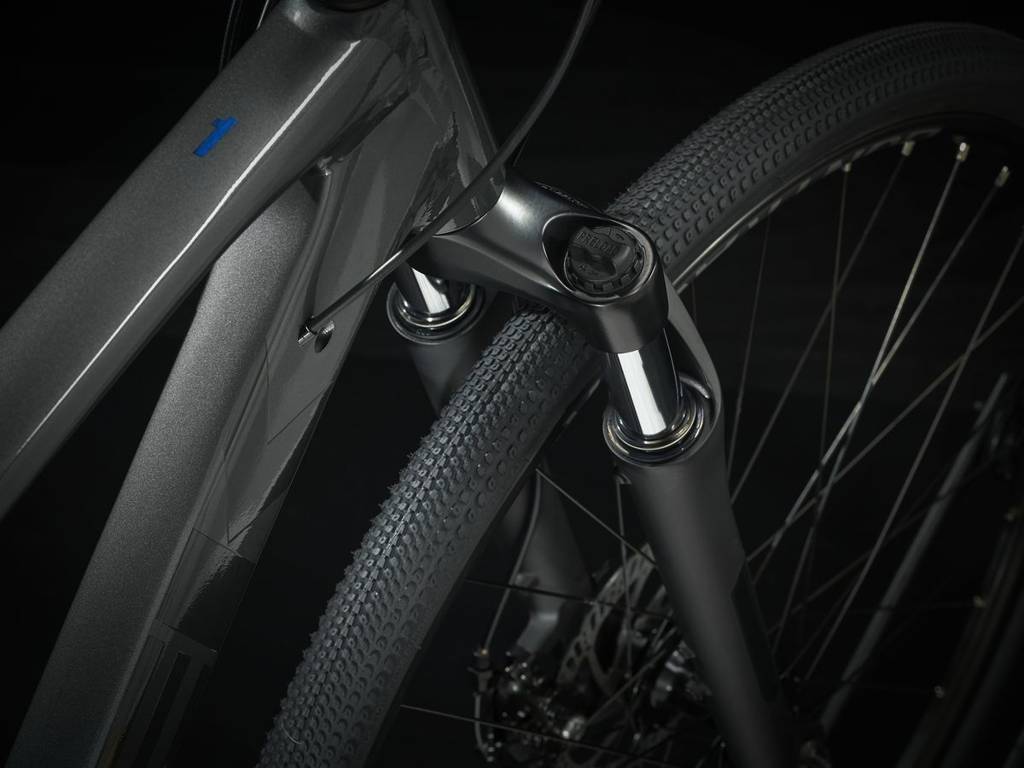

Alpha Gold Aluminium, DuoTrap S-compatible, internal cable routing, rack and mudguard mounts, post-mount disc, kickstand mount, 135x5 mm QR Fork - SR Suntour NEX, coil spring, preload, 100x5 mm QR, 63 mm travel
Wheels Hub front

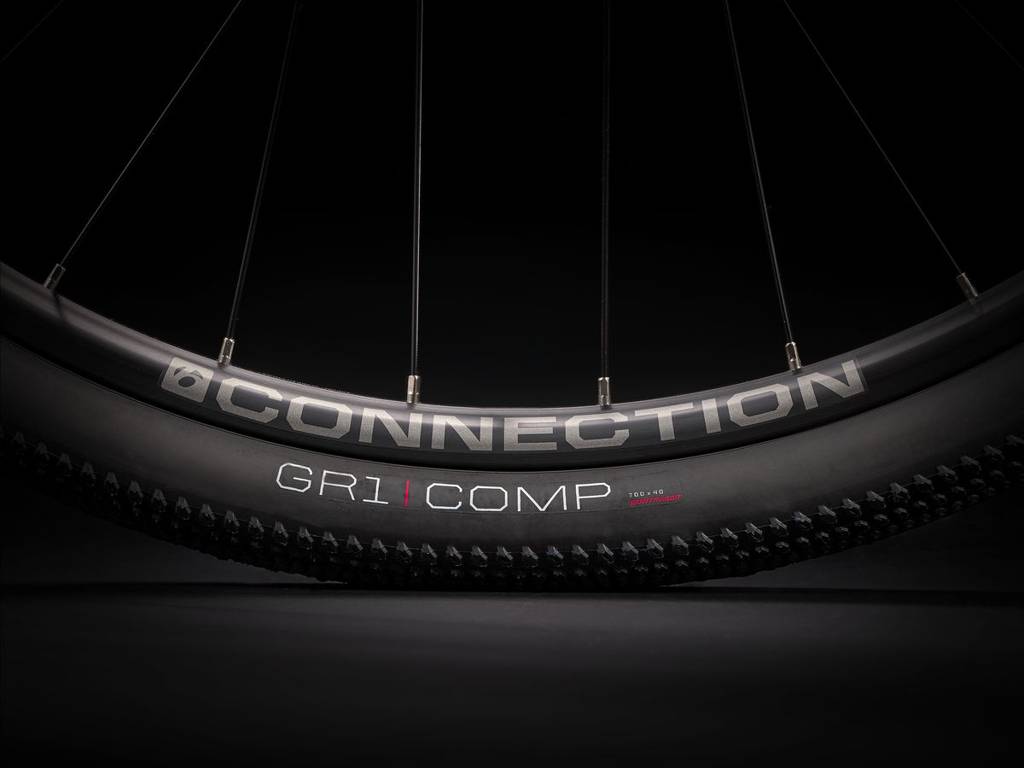

Formula DC-20, alloy, 6-bolt, 5x100 mm QR Hub rear - Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR Rim - Bontrager Connection, alloy, double-wall, 32-hole, Schrader valve Tyre - Bontrager GR1 Comp, wire bead, 60 tpi, 700x40 c Max tyre size - Frame: 700x45c with fenders, 29x2.10" without fenders Fork: See manufacturer
Drivetrain Shifter

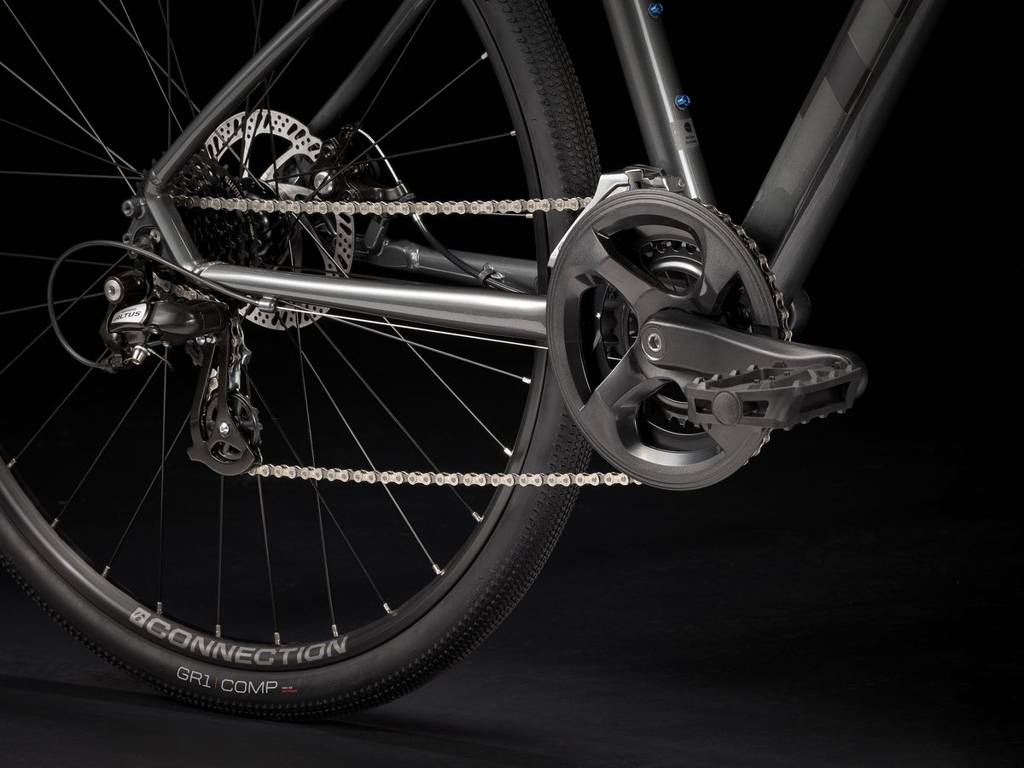

Shimano EF500, 8-speed Front derailleur - Shimano Tourney TY710, 34.9 mm clamp, top swing, dual pull Rear derailleur - Shimano Altus M310 Crank - Forged alloy, 46/30, chainguard, 170 mm length Bottom bracket - Sealed cartridge, 68mm Cassette - Shimano HG31, 11-32, 8-speed Chain - KMC Z8.3 Pedal - Wellgo nylon platform
Components Saddle

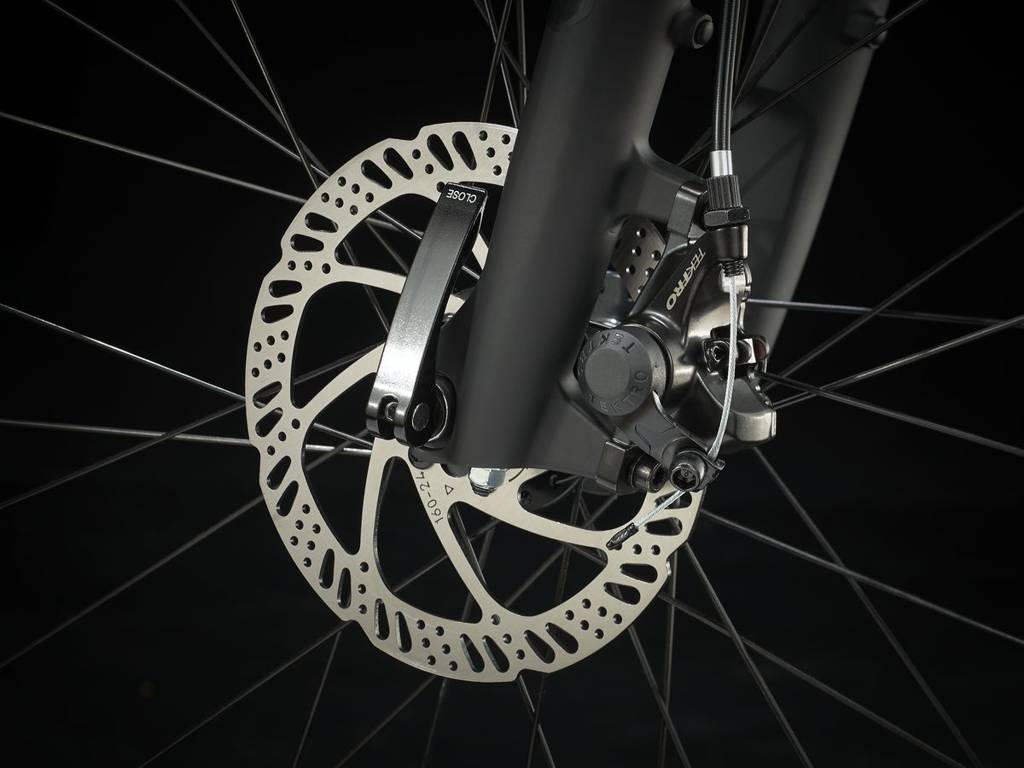

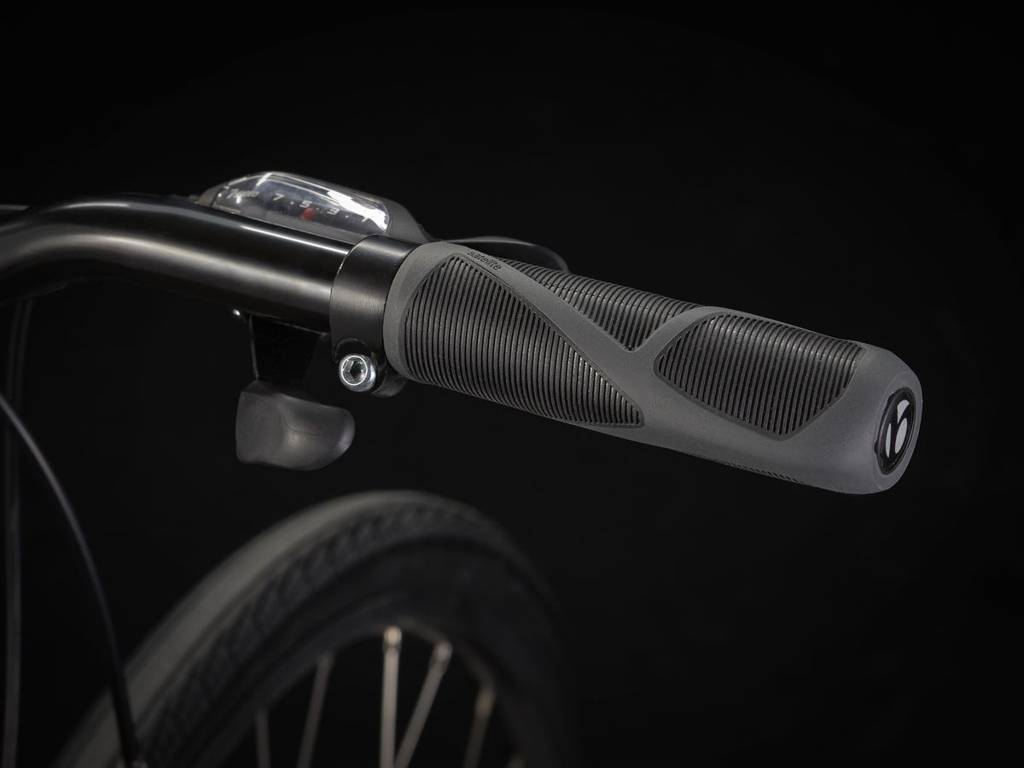

Bontrager Sport Seatpost - Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length Handlebar Size: S, M - Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width Handlebar Size: L, XL - Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620 mm width Grips - Bontrager Satellite Stem Size: S, M - Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length Stem Size: L, XL - Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length Head set - 1-1/8" threadless, sealed cartridge bearings Brake - Tektro MD-M280 mechanical disc, 160 mm rotor
Weight Weight
M - 13.54 kg Weight limit - This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg.
