Why you'll love it
Atriði 2
A light, comfortable frame and quality parts make it an amazing platform for long, fast group rides
Atriði 3
The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly
Atriði 4
Hydraulic disc brakes give you more precise and consistent stopping power in any conditions
Atriði 5
Bigger tyre clearance lets you run wider tyres for more traction and stability on rail trails and other light gravel roads
Atriði 6
DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Hub front
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Rim Size: 44, 49, 52, 54, 56, 58, 61
Bontrager Paradigm, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
Max tyre size
35c without fenders, 32c with fenders

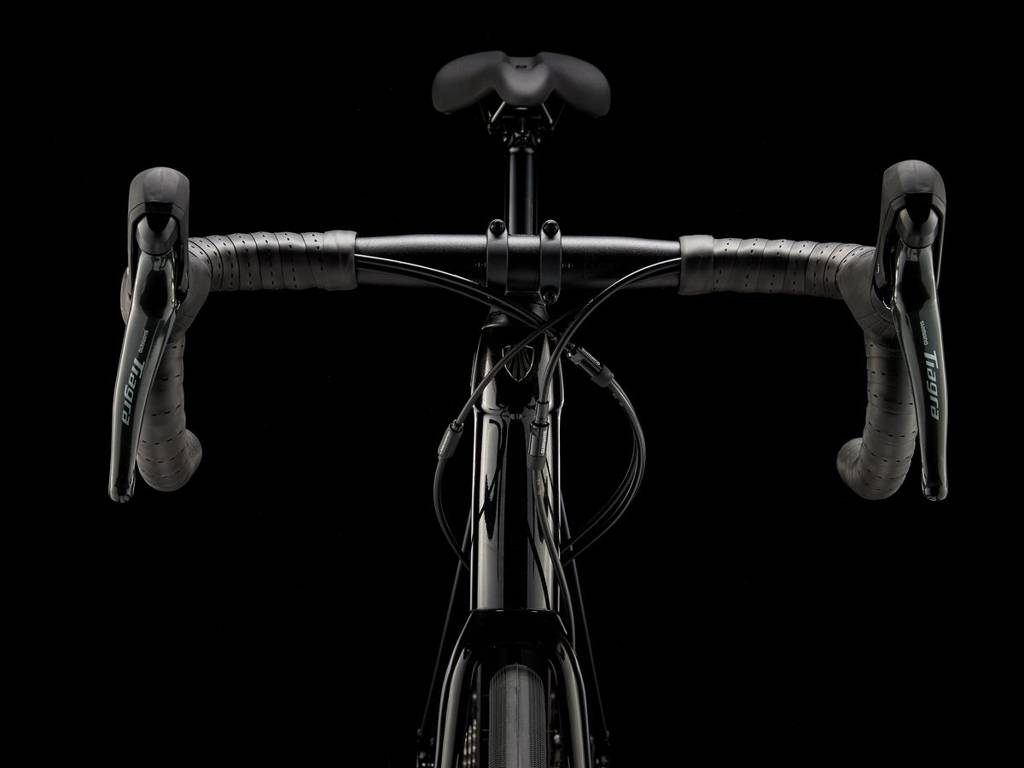

Shifter
Shimano Tiagra R4725, short-reach lever, 10-speed
Front derailleur
Shimano Tiagra 4700, 31.8 mm clamp
Rear derailleur
Shimano Tiagra 4700, long cage, 34T max cog

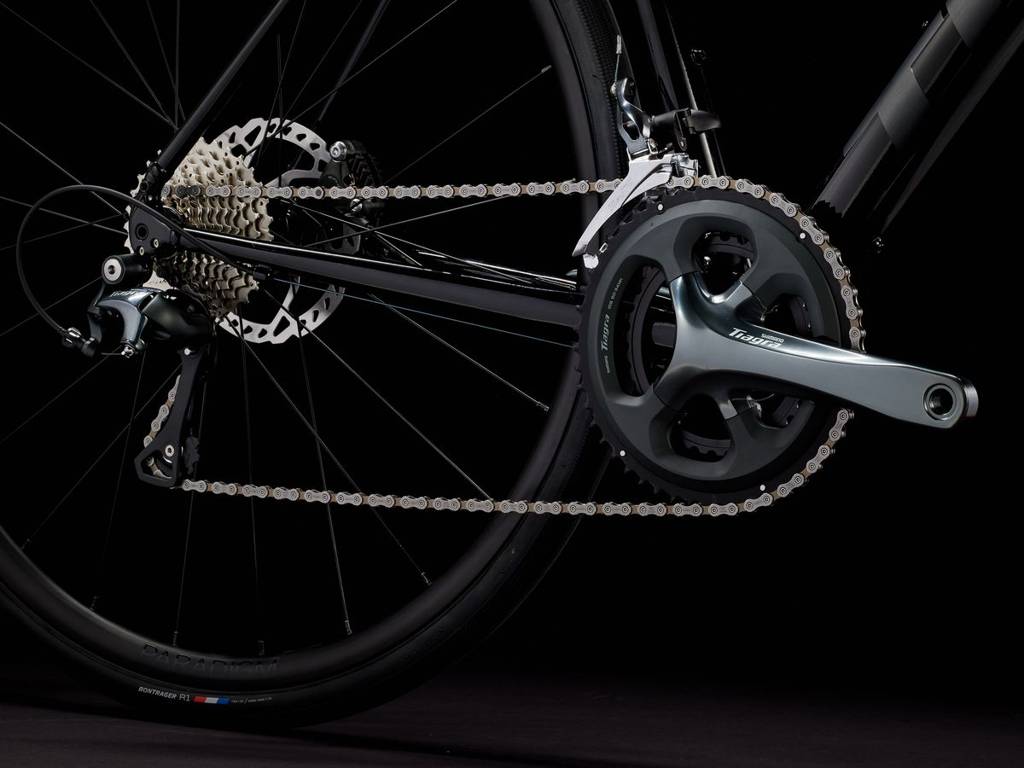

Crank Size: 44
Shimano Tiagra 4700, 50/34, 165 mm length
Crank Size: 49, 52
Shimano Tiagra 4700, 50/34, 170 mm length
Crank Size: 54, 56
Shimano Tiagra 4700, 50/34, 172.5 mm length
Crank Size: 58, 61
Shimano Tiagra 4700, 50/34, 175 mm length
Bottom bracket
Prowheel PW-BB73+, 68/73 mm, threaded external
Cassette
Shimano 10-speed, 11-32T
Chain
Shimano Tiagra HG54, 10-speed
Saddle Size: 44, 49, 52
Bontrager Verse Comp, steel rails, 155 mm width
Saddle Size: 54, 56, 58, 61
Bontrager Verse Comp, steel rails, 145 mm width
Seatpost Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Seatpost Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length

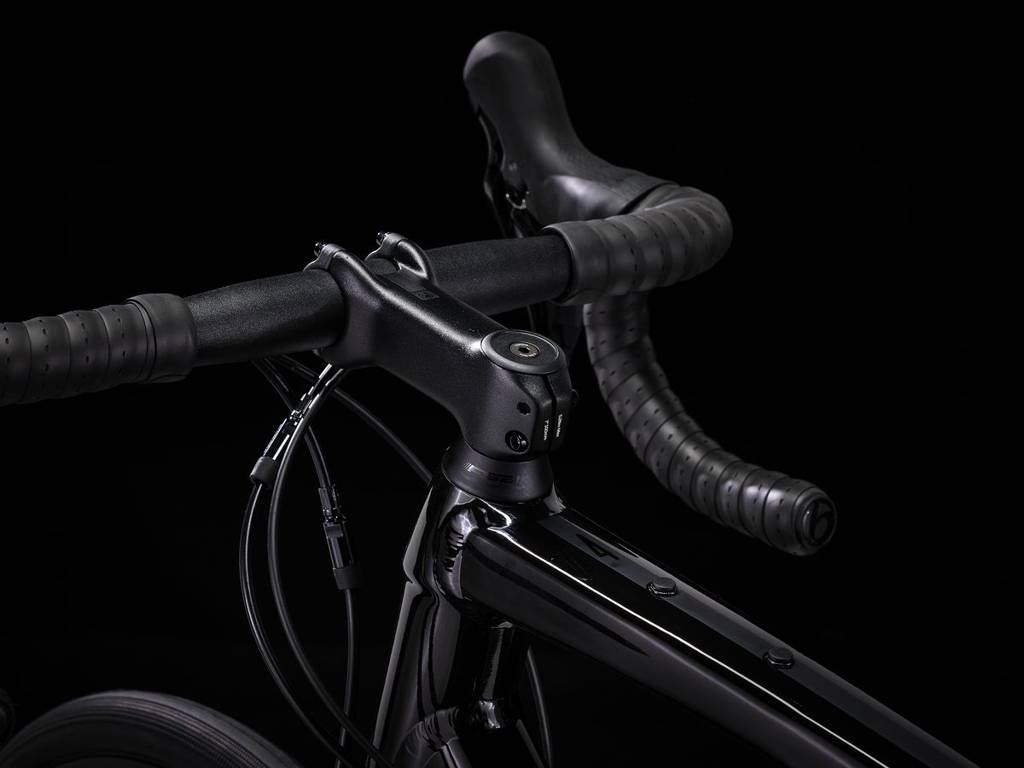

Handlebar Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Handlebar Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Handlebar Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Handlebar Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Atriði 11
Handlebar tape Bontrager Supertack Perf tape
Stem Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Stem Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length

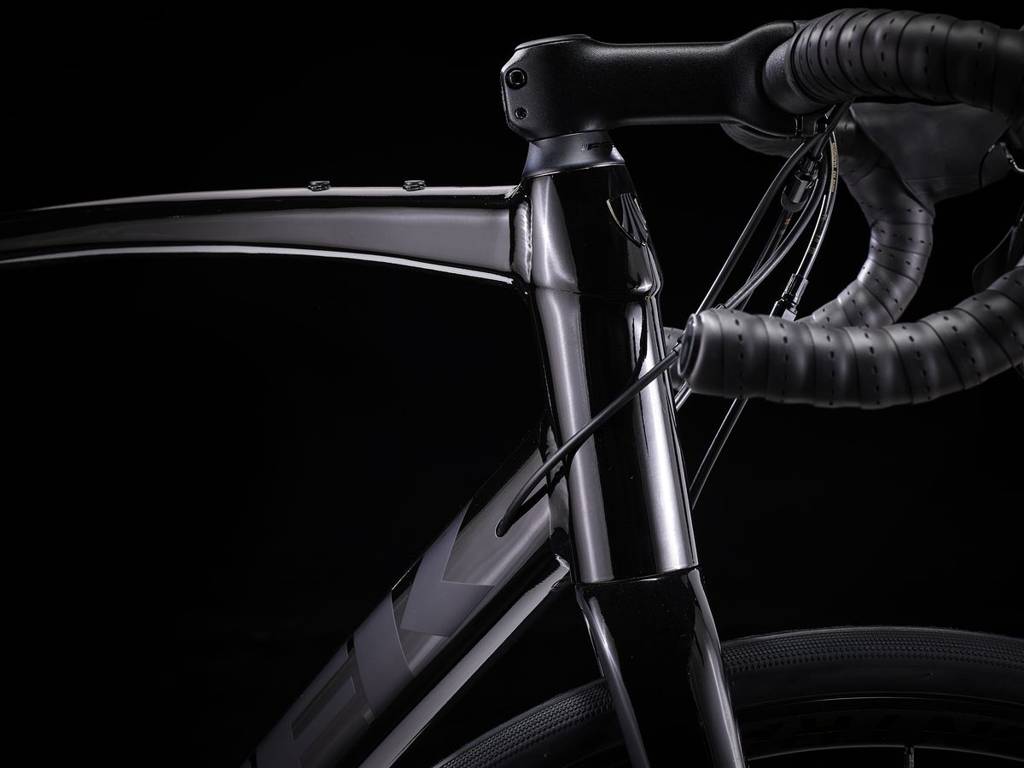

Head set
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake
Shimano Tiagra hydraulic disc
Brake rotor
Shimano RT66, 6-bolt, 160 mm
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg.
