Atriði 1
A smooth, comfortable, and super fun ride at a price that won't break the bank
Atriði 2
The stable Endurance Geometry delivers comfort and confidence
Atriði 3
The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won't fatigue as quickly
Atriði 4

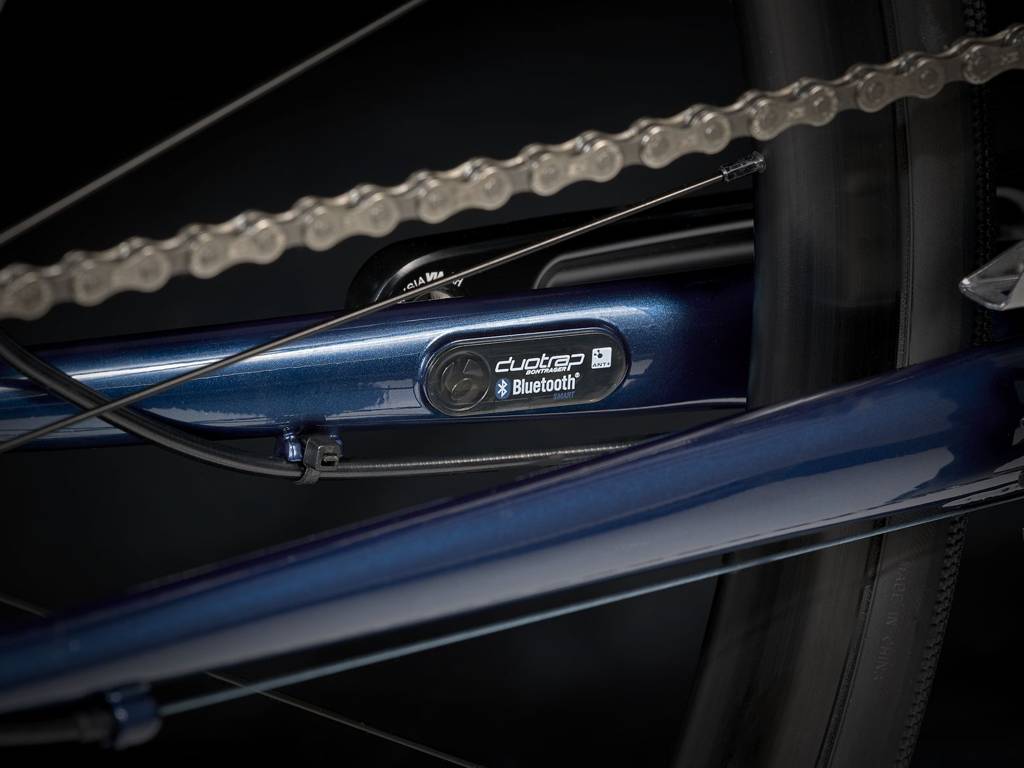

DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
Atriði 5
Like every Trek bike, it's backed by a lifetime warranty and supported by a wide network of retail partners
Frame
100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
Fork
Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
Hub front
Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
Skewer front
Bontrager Switch thru axle, removable lever
Hub rear
Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch thru-axle, removable lever
Rim
Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
Max tyre size
35c without fenders, 32c with fenders
Shifter
Shimano Claris R2000, 8-speed
Front derailleur
Shimano Claris R2000, 31.8 mm clamp
Rear derailleur
Shimano Claris R2000, long cage, 34T max cog
Crank Size: 44
Shimano RS200, 50/34 (compact), 165 mm length
Crank Size: 49, 52, 54
Shimano RS200, 50/34 (compact), 170 mm length
Crank Size: 56, 58, 61
Shimano RS200, 50/34 (compact), 175 mm length
Bottom bracket
Shimano UN300, 68 mm, threaded cartridge, 110 mm spindle
Cassette
Shimano HG31, 11-32, 8-speed
Chain
Shimano Sora HG71, 8-speed
Saddle Size: 44, 49, 52
Bontrager P3 Verse Comp, steel rails, 155 mm width
Saddle Size: 54, 56, 58, 61
Bontrager P3 Verse Comp, steel rails, 145 mm width
Seatpost Size: 44, 49
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250 mm length
Seatpost Size: 52, 54, 56, 58, 61
Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 330 mm length
Handlebar Size: 44, 49
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 38 cm width
Handlebar Size: 52
Bontrager Comp VR-S, alloy, 31.8 mm, 81 mm reach, 118 mm drop, 40 cm width
Handlebar Size: 54, 56
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width
Handlebar Size: 58, 61
Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem Size: 44
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: 49
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: 52, 54
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: 56, 58
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Stem Size: 61
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 110 mm length
Head set
FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
Brake
Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor
Atriði 11
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg.
