Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

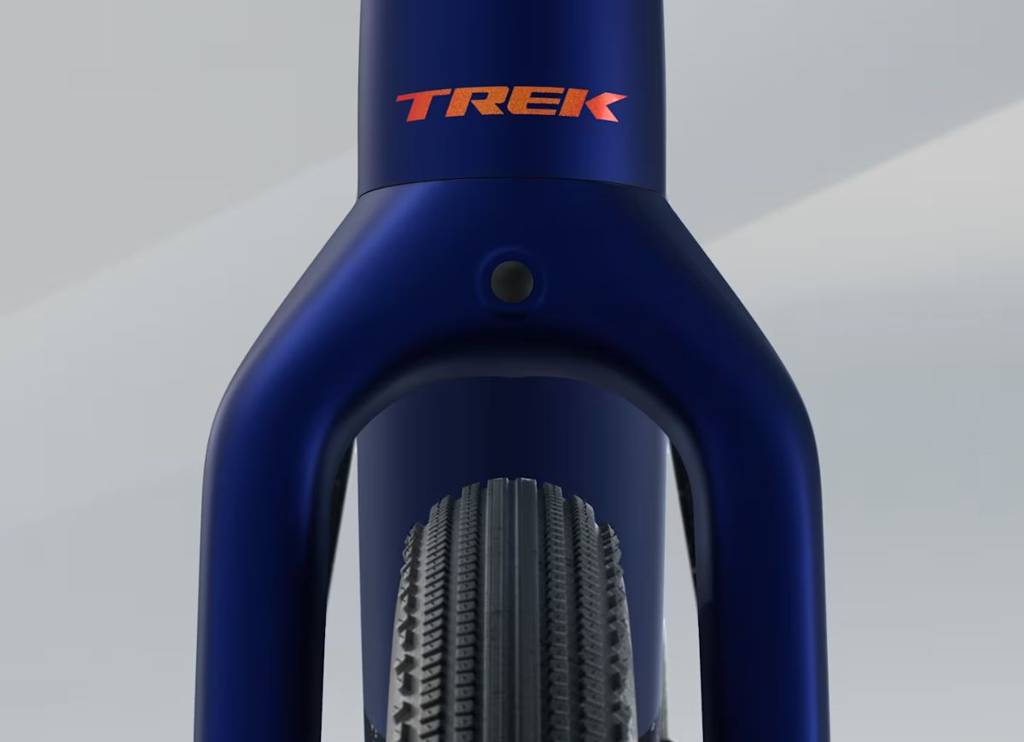

Fork
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Battery
SRAM AXS battery pack (with charger)
Shifter Size: XS, S, M, ML, L, XL
SRAM Rival eTap AXS, 12-speed
Shifter Size: XS, S, M, ML, L, XL
SRAM Rival eTap AXS, 12 speed

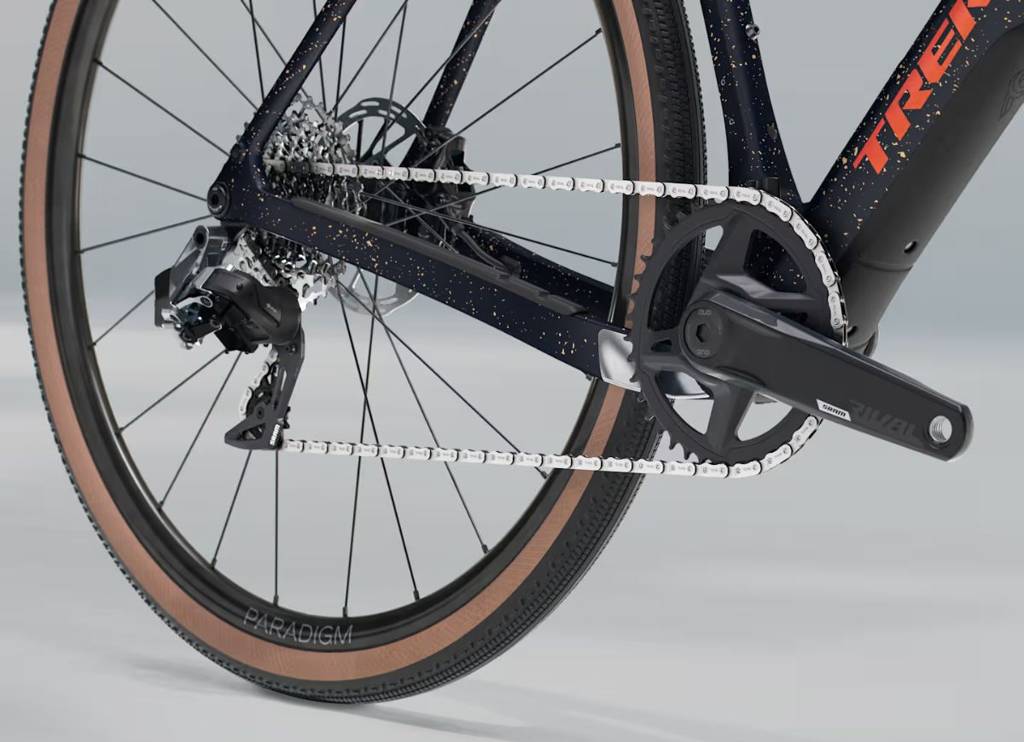

Rear derailleur
SRAM Rival XPLR eTap AXS, 44T max cog
Crank Size: XS, S
SRAM Rival, 40T, DUB Wide, 165 mm length
Crank Size: M
SRAM Rival, 40T, DUB Wide, 170 mm length
Crank Size: ML, L
SRAM Rival, 40T, DUB Wide, 172.5 mm length
Crank Size: XL
SRAM Rival, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XG-1251, 10-44, 12-speed
Max. chainring size
1x:44 2x: 46/30
Wheel front
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Wheel rear
Bontrager Paradigm Comp 25, Tubeless Ready, 25mm rim width, SRAM XD-R 12-speed freehub, 142x12 thru axle
Skewer front
Bontrager Switch chamfered thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Tyre
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle Size: XS, S
Verse Short Comp, steel rails, 155 mm width
Saddle Size: M, ML, L, XL
Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

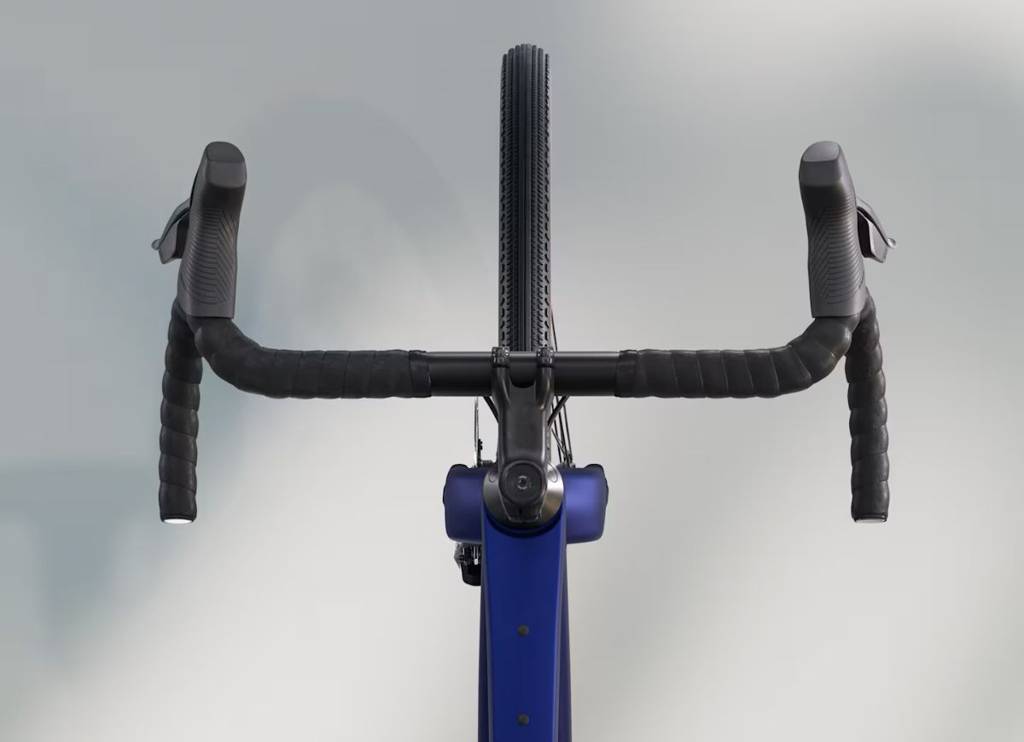

Handlebar Size: XS
Bontrager Elite Gravel, alloy, 40 cm width
Handlebar Size: S, M
Bontrager Elite Gravel, alloy, 42 cm width
Handlebar Size: ML, L
Bontrager Elite Gravel, alloy, 44 cm width
Handlebar Size: XL
Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem Size: XS
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Stem Size: S
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: M, ML
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: L
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: XL
Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180mm front and rear
Weight
ML - 9.40 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg.
