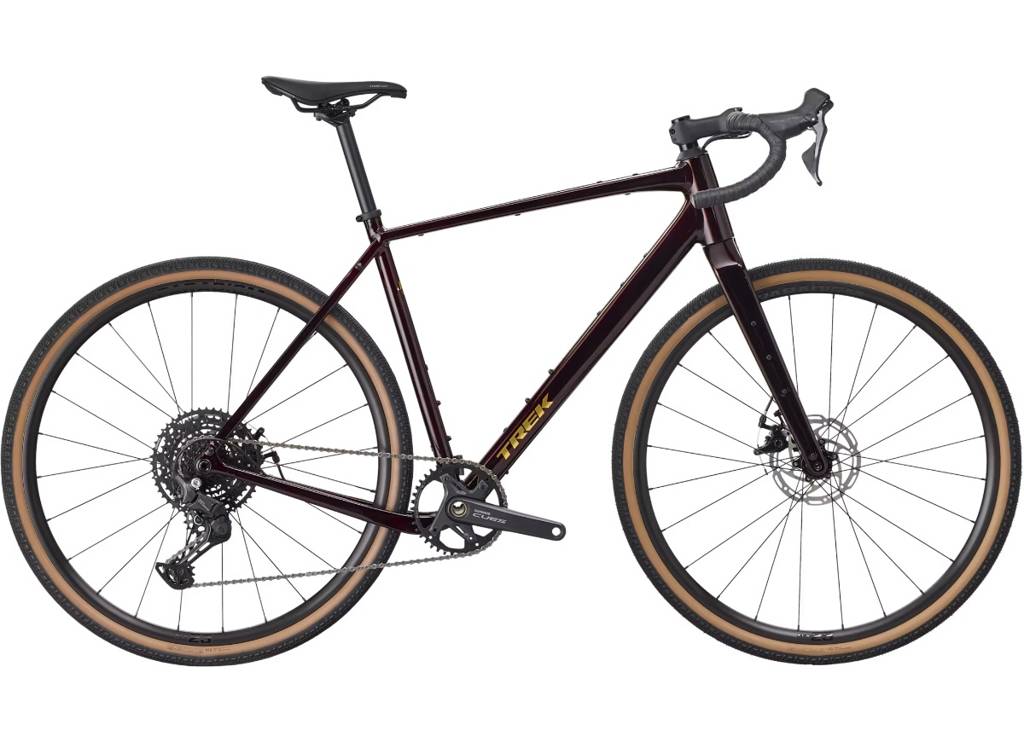

Checkpoint ALR 3

The new Checkpoint ALR is equipped to carry everything you need with mounts on the frame and fork for front and rear racks, fenders, and Adventure Top Tube, Frame, and Triangle Bags. Plus, the new frame was optimized to fit extra hydration in addition to all your bags.

Designed with Gravel Endurance geometry with a higher stack and shorter reach for improved comfort and control on long days in the saddle.

Designed with 50mm (or 29 x 2.0)* tire clearance for more grip and comfort on challenging terrain.*As measured

Compatible with a suspension fork* and dropper post for riders tackling technical descents or seeking more aggressive off-road performance. *Available on all sizes except XS frames

Frame

300 Series Alpha Aluminum, Internal cable routing, 3S chain keeper, T47, UDH, rack and fender mounts, integrated frame bag mounts, flat mount disc, 142x12mm chamfered thru axle

Fork

Trek Checkpoint, full carbon, tapered steerer, rack mounts, fender mounts, flat mount disc, 12x100mm thru axle

Hub front

Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle

Skewer front

Bontrager Switch chamfered thru axle

Hub rear

Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle

Skewer rear

Bontrager Switch chamfered thru axle, removable lever

Rim

Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23mm width, Presta valve

Spokes

14g stainless steel, black

Tire

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42mm

Tire part

Bontrager TLR sealant, 6oz

Max tire size

50mm without fenders, 42mm with fenders (as measured, see manual for details)

Shifter

Shimano CUES 10 Speed Right STU303010R

Rear derailleur

Shimano CUES U6000 GS

*Crank

Size: XS, S

Shimano CUES FCU60301, 40T ring, 165mm length

Size: M, ML

Shimano CUES FCU60301, 40T ring, 170mm length

Size: L, XL

Shimano CUES FCU60301, 40T ring, 172.5mm length

Bottom bracket

Praxis, T47 threaded, internal bearing

Cassette

Shimano CUES LG300, LINKGLIDE, 11-48, 10 speed

Chain

Shimano LG500, 9/10/11 speed

Max chainring size

1x:44 2x: 46/30

Saddle

Verse Short Comp, steel rails, 145mm width

Seatpost

Bontrager alloy, 27.2mm, 12mm offset, 330mm length

*Handlebar

Size: XS, S

Bontrager Elite Gravel, alloy, 40cm width

Size: M, ML

Bontrager Elite Gravel, alloy, 42cm width

Size: L

Bontrager Elite Gravel, alloy, 44cm width

Size: XL

Bontrager Elite Gravel, alloy, 46cm width

Handlebar tape

Bontrager Supertack Perf tape

*Stem

Size: XS

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length

Size: S, M

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length

Size: ML, L

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length

Size: XL

Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length

*Brake

Size: XS, S, M, ML, L, XL

Tektro C550 mechanical disc brake, dual piston, flat mount 0 offset

Size: XS, S, M, ML, L, XL

Tektro C550 mechanical disc brake, dual piston, flat mount, No adaptor.

Size: XS, S, M, ML, L, XL

Shimano CUES U3030

Brake rotor

Tektro, centerlock, 160mm

Rotor size

Max brake rotor sizes: 180mm front & rear

Weight

10.41 kg / 22.96 lbs (with TLR sealant, no tubes)

Weight limit

This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.
