Frame
500 Series OCLV Carbon, IsoSpeed, downtube storage door, hidden mudguard mounts, rack mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle

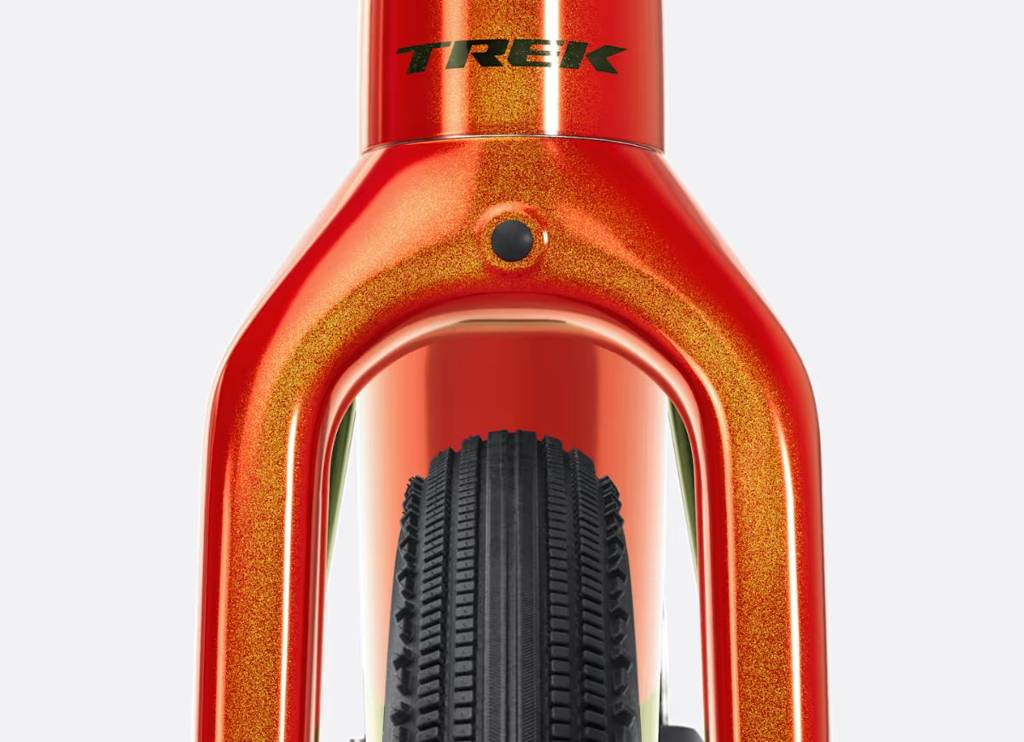

Fork
Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Battery
SRAM AXS battery pack (with charger)
Shifter
SRAM Apex AXS, 12-speed

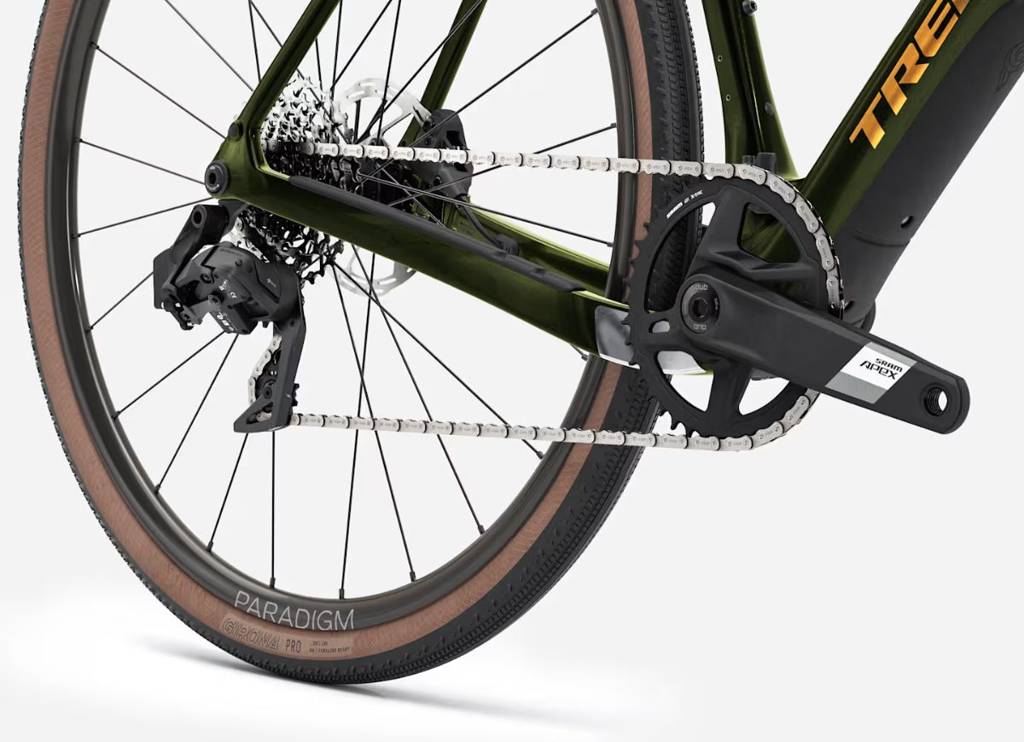

Rear derailleur
SRAM Apex XPLR eTap AXS, 44T max cog
Crank Size: XS, S
SRAM Apex 1, 40T, DUB Wide, 165 mm length
Crank Size: M
SRAM Apex 1, 40T, DUB Wide, 170 mm length
Crank Size: ML, L
SRAM Apex 1, 40T, DUB Wide, 172.5 mm length
Crank Size: XL
SRAM Apex 1, 40T, DUB Wide, 175 mm length
Bottom bracket
SRAM DUB Wide, T47 threaded, internal bearing
Cassette
SRAM XPLR PG-1231, 11-44, 12-speed
Max. chainring size
1x:44 2x: 46/30
Wheel front
Bontrager Paradigm SL, Tubeless Ready, 21 mm rim width, 100x12 mm thru axle
Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim Size: XS, S, M, ML, L, XL
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Rim Size: XS, S, M, ML, L, XL
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
50 mm without mudguards, 42 mm with mudguards (as measured, see manual for details)
Saddle Size: XS, S
Verse Short Comp, steel rails, 155 mm width
Saddle Size: M, ML, L, XL
Verse Short Comp, steel rails, 145 mm width
Seatpost
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length

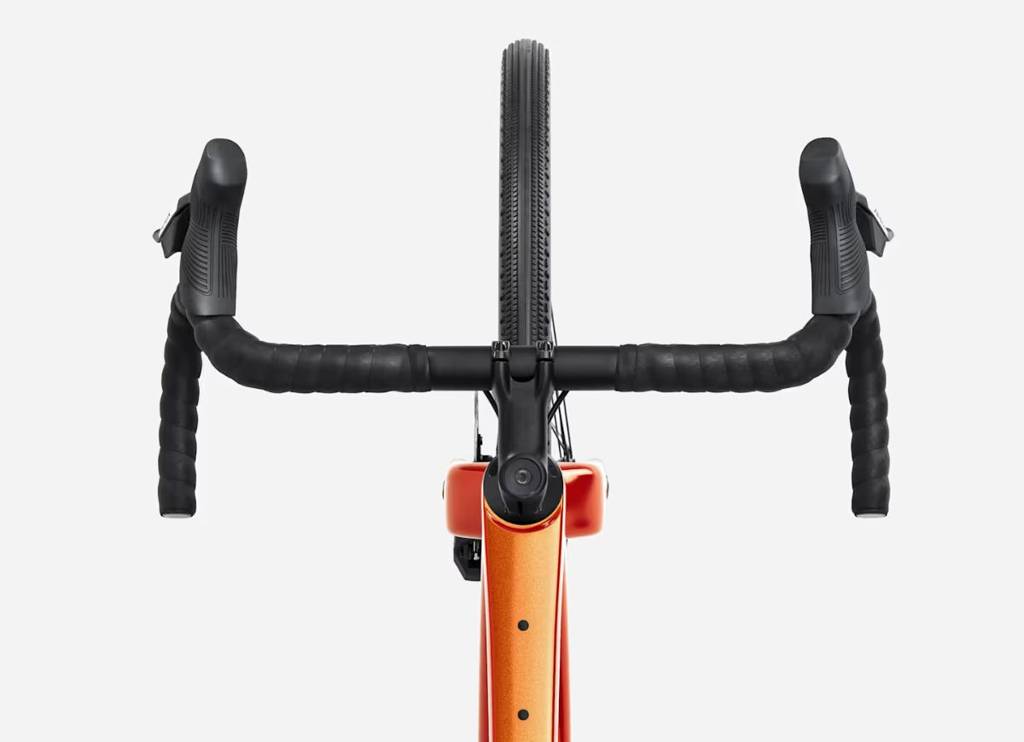

Handlebar Size: XS
Bontrager Elite Gravel, alloy, 40 cm width
Handlebar Size: S, M
Bontrager Elite Gravel, alloy, 42 cm width
Handlebar Size: ML, L
Bontrager Elite Gravel, alloy, 44 cm width
Handlebar Size: XL
Bontrager Elite Gravel, alloy, 46 cm width
Handlebar tape
Bontrager Supertack Perf tape
Stem Size: XS
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Stem Size: S
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Stem Size: M, ML
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Stem Size: L
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
Stem Size: XL
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 100 mm length
Brake rotor
SRAM Paceline, rounded, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front and rear
Weight
ML – 9.50 kg (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg.
