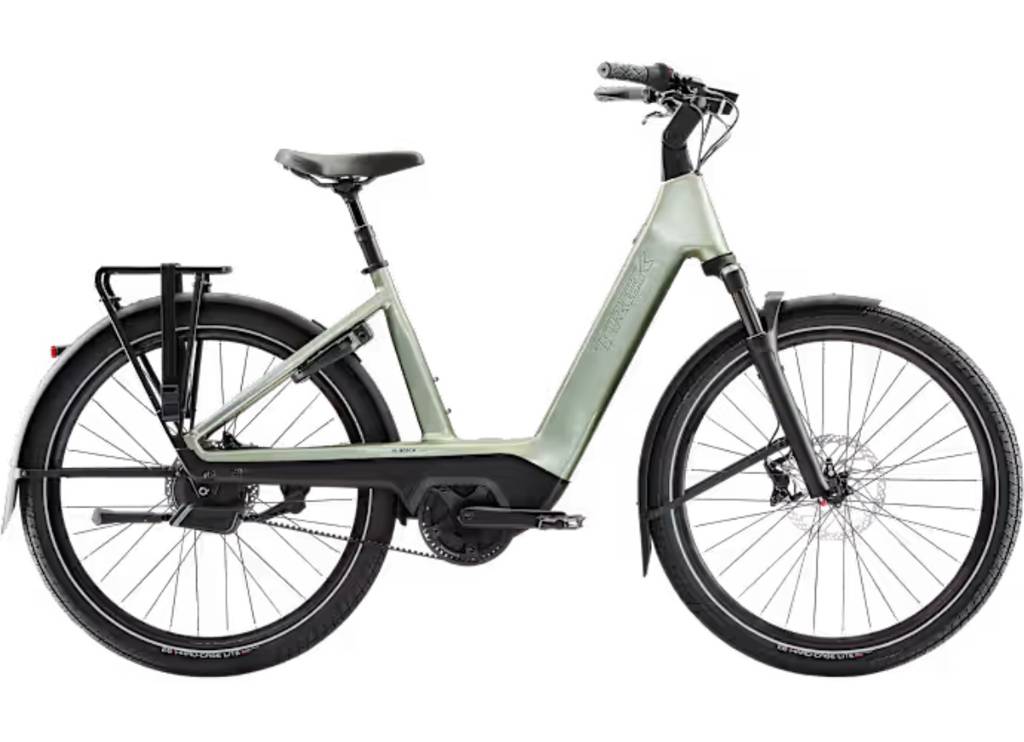

Charter+ 5 Auto 800wh Lowstep

Frame

Frame made of premium Alpha Platinum aluminum, top-loading Bosch CompactTube battery, internal cable routing at the cockpit, luggage rack and mudguards, adjustable dropouts

Fork

SR Suntour Mobie 34, tapered steerer tube, air spring, adjustable rebound and compression, lockout, 100mm QR, 80mm travel

VR hub

Shimano TC500, Centerlock, 110x15mm thru axle

rear hub

Enviolo Trekking, 32-hole, 6-bolt disc brake, 40T

*Rim

Sizes: S, M, L, XL

Bontrager Kovee, double-wall rim, tubeless ready, 28-hole, 23 mm internal width, Presta valve

Sizes: S, M, L, XL

Bontrager Kovee, double-wall rim, tubeless ready, 32-hole, 23 mm internal width, Presta valve

spokes

14 g, stainless steel, black

Tires

Bontrager E6 Hard Case Lite, Reflective, Wire Bead Core, 60 TPI, 27.5 x 2.4

Max. tire size

Frame: 27.5 x 2.40", Fork: see manufacturer's specifications

Battery

Bosch PowerTube 800 Wh, Smart System

charger

Bosch standard charger 4 A, 230 V, Smart System

Controller

Bosch Kiox 500, smart system

computer

Bosch LED remote, smart system

Motor

Bosch Smart System PX, 90 Nm, 250 W, 25 km/h max. support

crank

ProWheel, aluminum, 170 mm crank arm length

cassette

Gates CDX CenterTrack, 22 teeth

belt

Gates CDX CenterTrack, 125 teeth

pedal

Bontrager City Pedals

Max. chainring size

1x: 50Z.

saddle

Bontrager Boulevard

*Seatpost

Size: S, M

Spring-loaded, aluminum, 350mm long with adjustable spring tension

Size: L, XL

Spring-loaded, aluminum, 300mm long with adjustable spring tension

handlebars

Aluminum, 31.8 mm clamp, 25 mm rise, 630 mm width

handles

Trek Ergonomic PRO, screw clamp

stem

Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 80mm length

*Brake

Sizes: S, M, L, XL

Shimano MT401 / MT420 hydraulic disc brake, 180 mm disc diameter

Sizes: S, M, L, XL

Shimano BR-MT420 hydraulic disc brake

*Brake disc

Sizes: S, M, L, XL

Shimano RT30, Center Lock, 203mm

Sizes: S, M, L, XL

Shimano RT26, 6-bolt disc mount, 180 mm

brake disc diameter

Max. brake disc diameter: Frame: 203 mm, Fork: See manufacturer's specifications

*Light

Sizes: S, M, L, XL

Trek LED rear light

Sizes: S, M, L, XL

Trek LED headlight

side stand

Pletscher Comp Flex 40

Weight

M – 27.60 kg (without battery)

Max. weight

This bicycle has a maximum weight limit (bicycle, rider and load) of 160 kg.

To measure your height, stand up straight, barefoot, with your back, heels, shoulders and head all touching a wall. While looking straight ahead, place a book or straight edge on your head and slowly push it against the wall. Your straight edge should be parallel with the floor. Mark the spot where the bottom of the book is touching the wall. The distance from the marked spot to the floor is your height.

How to measure: Stand barefoot with your back straight and against a wall. Tuck a ruler or something that extends to the floor between your legs. Using both hands, and keeping it level, pull the ruler up into your crotch as if you were sitting on the saddle. Measure the distance from the top edge of the ruler to the ground to find your inside leg measurement. Your inside leg is very important to your final bike size so please measure carefully.

Rider Height Inseam

155 - 165 cm 5'1" - 5'5" 74 - 78 cm 29" - 31"

165 - 177 cm 5'5" - 5'10" 79 - 83 cm 31" - 33"

177 - 188 cm 5'10" - 6'2" 84 - 89 cm 33" - 35"

188 - 195 cm 6'2" - 6'5" 89 - 91 cm 35" - 36"
